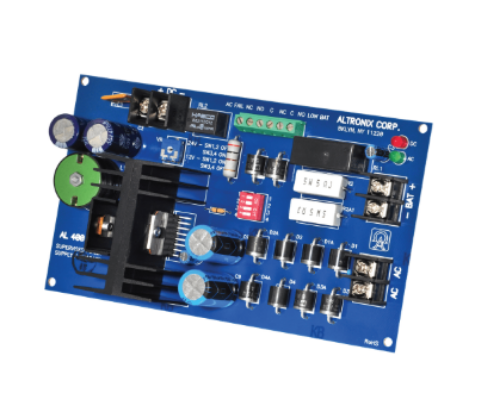

Altronix AL400ULB Power Supply Board, Input 28VAC, 100VA, 12VDC at 4A or 24VDC at 3A Board

** Altronix AL400ULB Power Supply Board, Input 28VAC, 100VA, 12VDC at 4A or 24VDC at 3A  Board, Lifetime Warranty

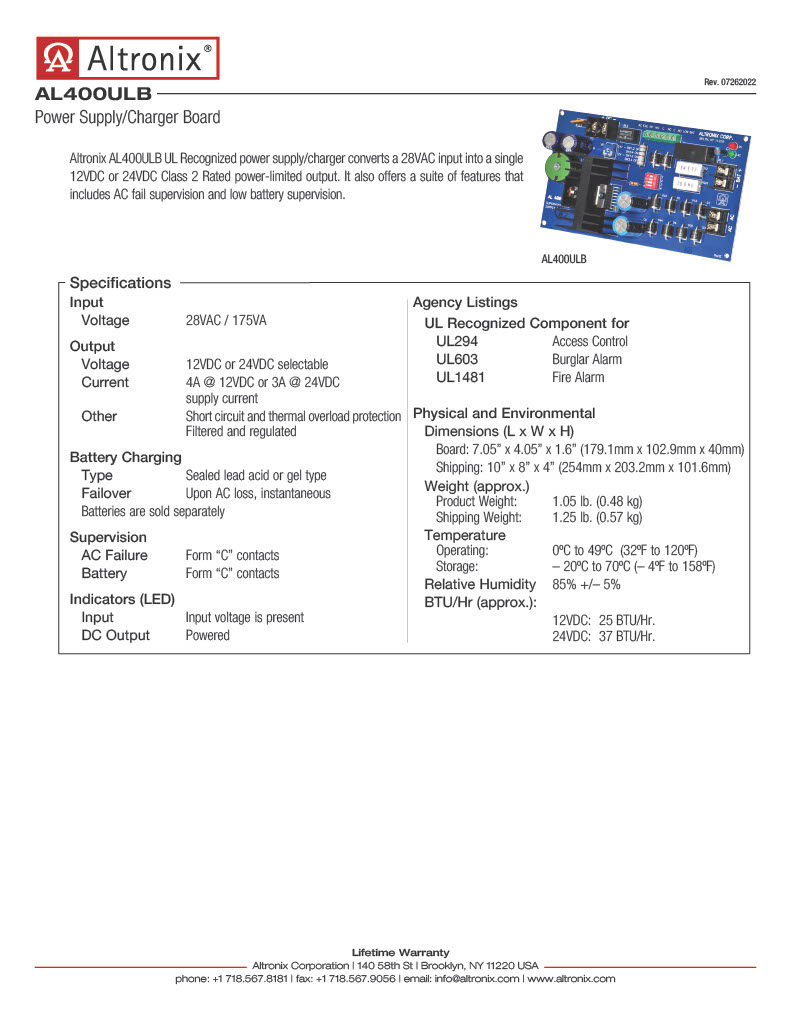

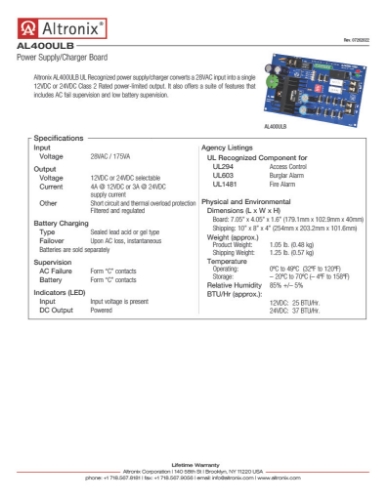

Specifications:**

Input: 28VAC, 175VA.

Output: 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Electrical:Temperature:

Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 25 or 37 BTU/Hr. System AC input VA requirement: 166.75VA.

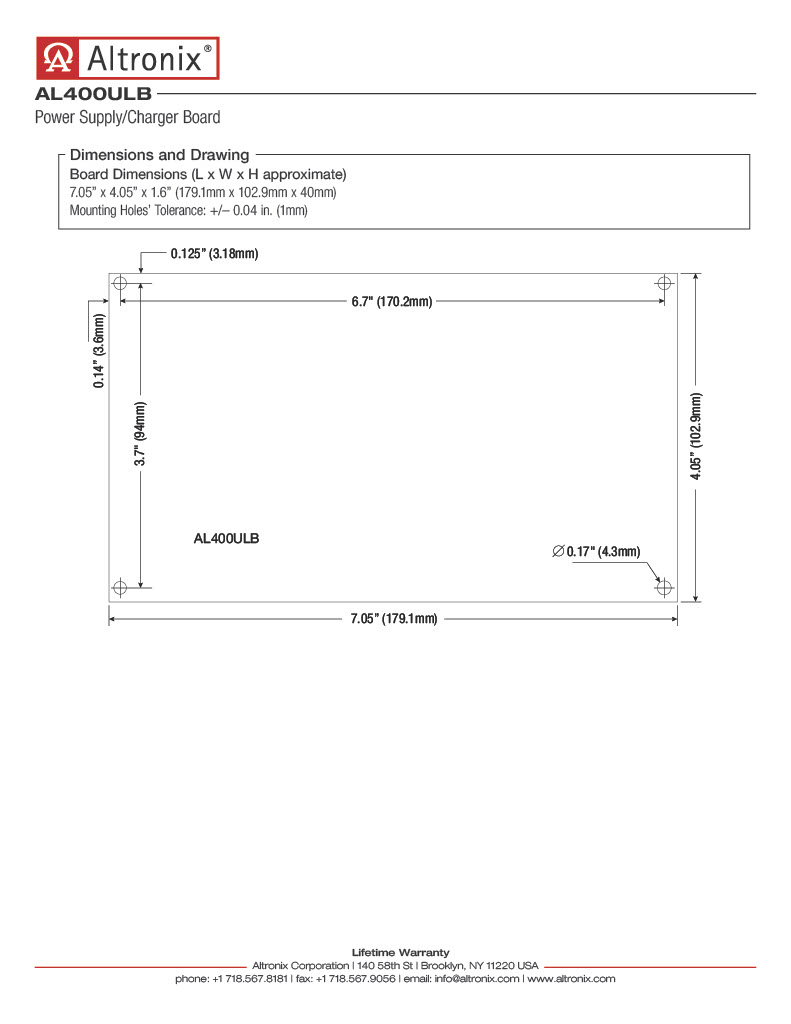

Dimensions (approximate): 4.1"W x 7.1"L x 1.75"H (104.14 mm W x 180.34 mm L x 44.45 mm H).

Product Weight: 1.05 Lbs. (0.48 kg). Shipping Weight: 1.25 Lbs. (0.57 kg).
