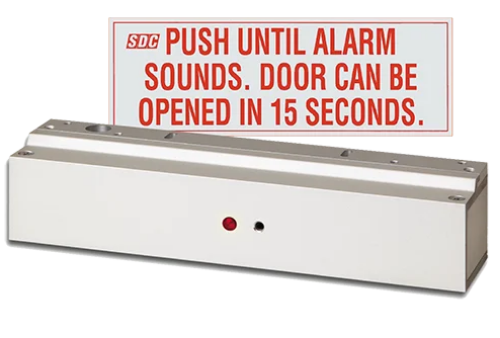

SDC 1581S-ND-V-D Mini Delayed Egress Lock W/ Door position status, Single, 650lbs Holding Force - Aluminum

SDC 1581S-ND-V-D Mini Delayed Egress Lock W/ Door position status, Single, 650lbs Holding Force, Surface Mount - Aluminum

Operation Mode:

ND- UBC, California Building Code, OSHPD, NFPA 101, IBC & IFC Compliant 15 second fixed exit delay, 2 second nuisance delay. Field selectable manual power up after emergency release for California and OSHPD compliance

D - Door position status

Features:

• 650 lbs Holding Force

• Subdued alarm with 2 distinct tones: Alarm activation - intermittent, Door release - continuous

• Self-aligning and vandal resistant proximity sensor trigger

• 5 foot cable

Specifications:

Voltage: Auto sensing 12/24 VDC input

Current: 500mA @ 12VDC | 320mA @ 24VDC

Size: 10"L x 2"H x 2-3/8"D

Inputs /Outputs: Sustained bypass input, Access control / REX input, timed, Door secure / unlocked output, Alarm activation output, Door Position Status

EXIT CHECK® APPLICATIONS INCLUDE:

Restricting the egress of patients for their own safety. Restricting the egress of commercial center patrons for minimum security application needs.

SIZE MATTERS:

The Mini Exit Check® is designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs.

In addition, the subdued alarm tone is less disruptive to patients and staff. SDC has also maintained all the features and status outputs found in most higher holding force delayed egress locks on the market.
