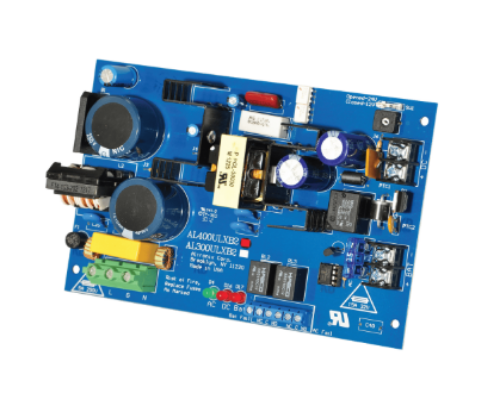

Altronix AL400ULXB2 UL Recognized Power Supply/Charger Board, Input 115VAC 60Hz at 3.5A, 12VDC at 4A or 24VDC at 3A

**Altronix AL400ULXB2 UL Recognized Power Supply/Charger Board, Input 115VAC 60Hz at 3.5A, 12VDC at 4A or 24VDC at 3A, Lifetime Warranty

This product replaces AL400ULXB**

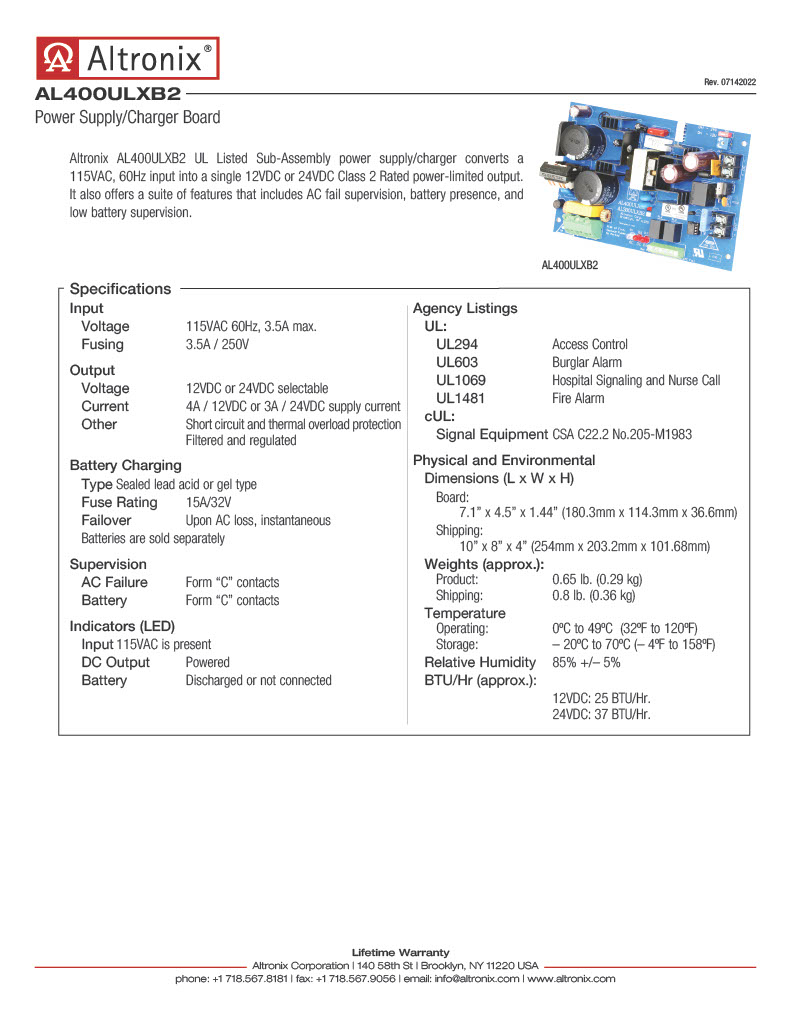

Specifications:

Input: 115VAC, 60Hz, 3A. Input fuse rated @ 3.5A/250V.

Output: 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input, DC outputand Battery LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.):12VDC: 25 BTU/Hr. - 24VDC: 37 BTU/Hr. System AC input VA requirement: 402.5VA.

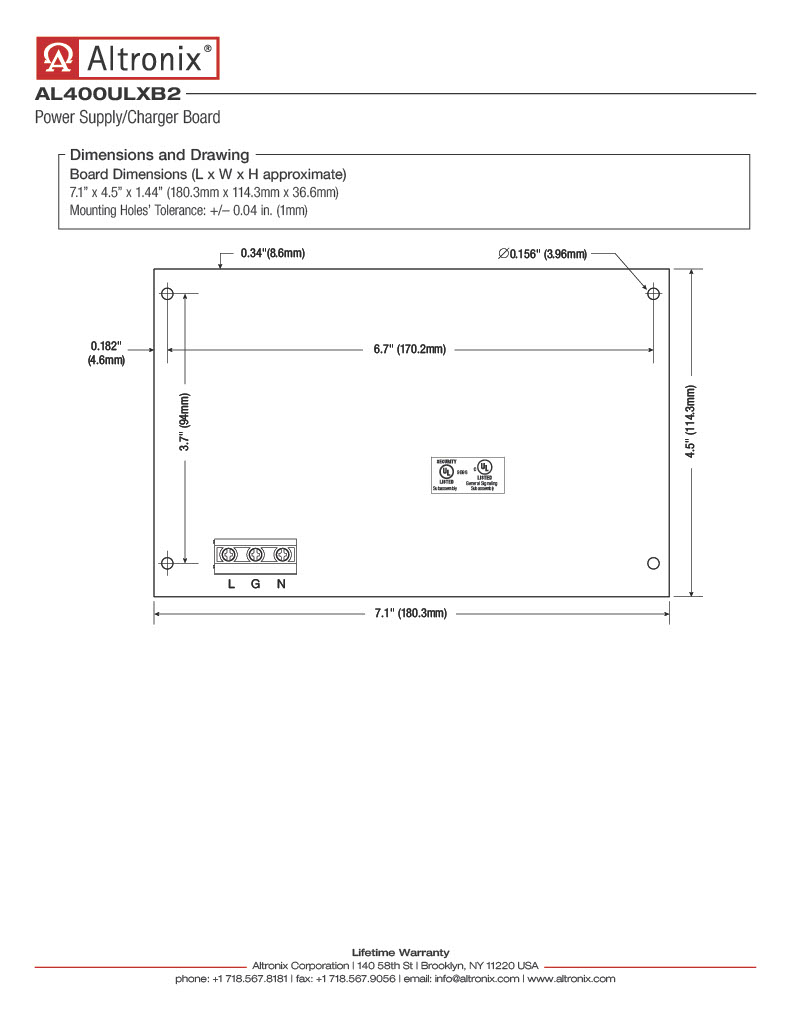

Dimensions (approximate): 4.5"W x 7.1"L x 1.44"H (114 mm W x 180 mm L x 37 mm H).

Product Weight:0.65 Lbs. (0.29 kg). - Shipping Weight: 0.8 Lbs. (0.36 kg).
