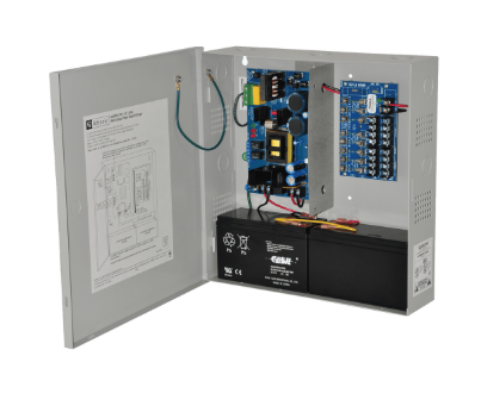

Altronix AL600ULPD8 Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 8 Fused Outputs, 12/24VDC at 6A, Grey Enclosure

Altronix AL600ULPD8 Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 8 Fused Outputs, 12/24VDC at 6A, Grey Enclosure, Lifetime Warranty

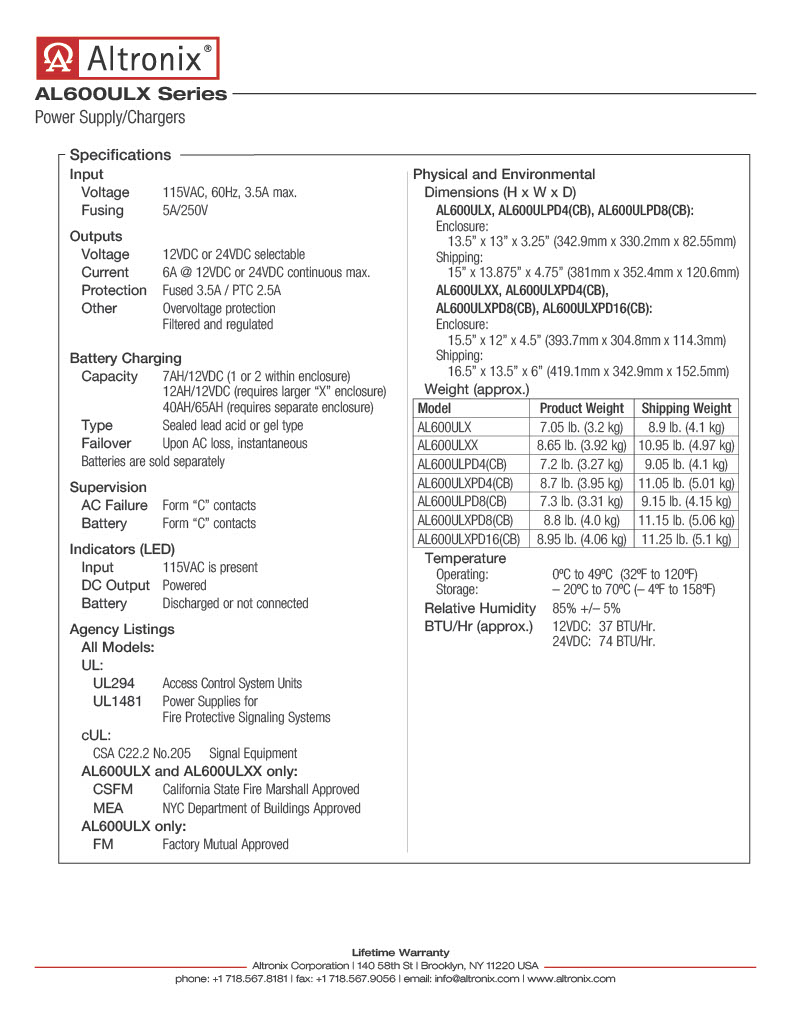

Specifications:

Input: 115VAC, 60Hz, 3.5A. Output: 12VDC or 24VDC selectable output. 6A continuous supply current. 8 fuse protected outputs. Output fuses are rated @ 3.5A/250VAC. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating - 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 402.5VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/7AH Batteries. *Batteries sold separately

Dimensions:13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:7.3 Lbs. (3.31 kg). Shipping Weight: 9.15 Lbs. (4.15 kg).
