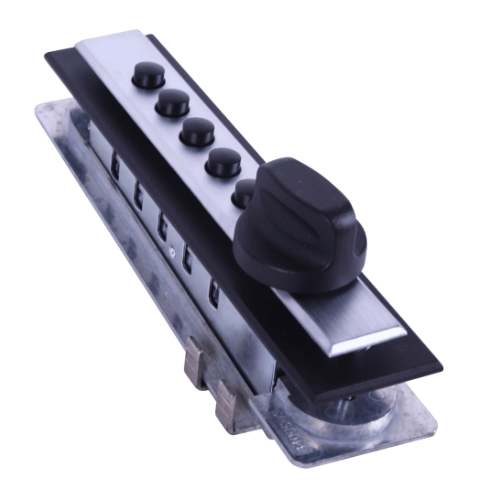

Dormakaba Simplex 9622C22-26D-41 Cabinet Lock, 5/8" To 7/8" Thick Door, End Throw- Spring Loaded Latch w/ Key Override, W/ Trim Plate, Satin Chrome

Dormakaba *Simplex 9622C22-26D-41 Mechanical Pushbutton Cabinet Lock, 5/8" To 7/8" Thick Door, End Throw- Spring Loaded Latch w/ Key Override, W/ Trim Plate,Clutch Ball Bearing Knob, Satin Chrome*

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Uses same combination system as our other pushbutton access controls and are specifically designed for cabinet doors, desk drawers, and similar applications. Ideal for use in many locations: medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, audio-visual cabinets, and petty cash drawers.

No Battery:Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes:Single access code—one easy-to-manage code for all users

Programming:Lock is easily programmed via keypad without removing lock from the door

Handing:Non-handed

Operation Mode:Pushbutton access

Economical:A cost effective access control solution

Mechanical Features

Construction:All metal cast face plate; force-resistant, protected exterior knob

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Finishes:Satin Chrome 26D (626); black trim plate (optional)

Weight:1 lb. (0.5 kg)

Bolt:  End Throw- Spring Loaded Latch w/ Key Override

Key Override (Optional):Select models

Door Thickness:Wood doors: ⅝" (16 mm) to ⅞" (22 mm)

Installation:Horizontal or vertical. Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications). Punched slot or series of 7 ⁄16" (11 mm) drilled holes (for metal applications).

Warranty:1-year warranty

Model: Dormakaba Simplex 9600, 9622C22-26D-41, 9622C22 26D 41, 9622C2226D41,962-2-C-2-2-26D-41,

?
