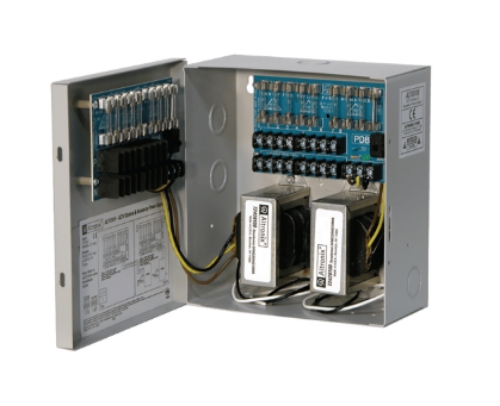

Altronix ALTV2416 CCTV Power Supply - Input 115VAC 50/60Hz at 1.9A, 16 Fuse Protected Outputs

**Altronix ALTV2416 CCTV Power Supply Input 115VAC 50/60Hz at 1.9A, 16 Fuse Protected Outputs, Grey Enclosure, Lifetime Warranty

Input:**115VAC, 50/60Hz, 1.9A.

Output;Sixteen (16) fuse protected outputs. 24VAC @ 8A (192VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 7A (196VA) supply current (0.438A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Temperature:Operating: 0 C to 49 C (32 F to 120 F). - Storage: - 20 C to 70 C ( - 4 F to 158 F). - Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):24VAC: 98 BTU/Hr. - 28VAC: 100 BTU/Hr.

System AC input VA requirement:218.5VA.

Features: Secondary fuse rated @ 10A/250V. AC power LED. Power ON/OFF switch. Spare fuses provided. (all models w/primary and/or secondary fuses).

Enclosure: Wall mount enclosure for indoor use.

Dimensions:7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Weights (approximate):Product Weight: 9.1 Lbs. (4.1 kg). - Shipping Weight: 10.1 Lbs. (4.6 kg).
