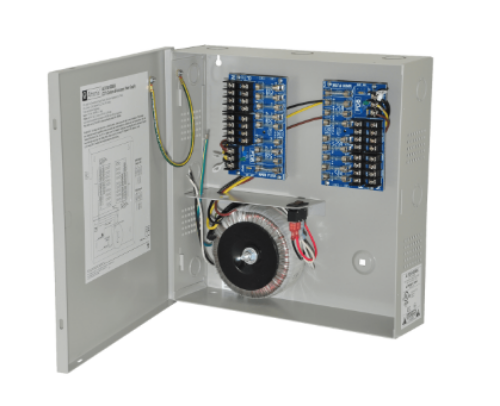

Altronix ALTV2416300UL CCTV Power Supply, Input 115VAC 50/60Hz at 2.7A, 16 Fuse Protected Outputs, 24VAC at 12.5A or 28VAC at 10A, Grey Enclosure

Altronix ALTV2416300UL CCTV Power Supply, Input 115VAC 50/60Hz at 2.7A, 16 Fuse Protected Outputs, 24VAC at 12.5A or 28VAC at 10A, Grey Enclosure Lifetime Warranty * *Specifications:

Input: 115VAC, 50/60Hz, 2.7A.

Output: 16 fuse protected outputs. 24VAC @ 12.5A (300VA) supply current (0.781A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (0.625A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 24VAC: 154 BTU/Hr. - 28VAC: 143 BTU/Hr. System AC input VA requirement: 310.5VA.

Features: Secondary fuse rated @ 10A/250V. AC power LED. Power ON/OFF switch. Spare fuses provided. (all models w/primary and/or secondary fuses).

Enclosure: Wall mount enclosure for indoor use.

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:17.1 Lbs. (7.756 kg). - Shipping Weight: 18.1 Lbs. (8.21 kg).
