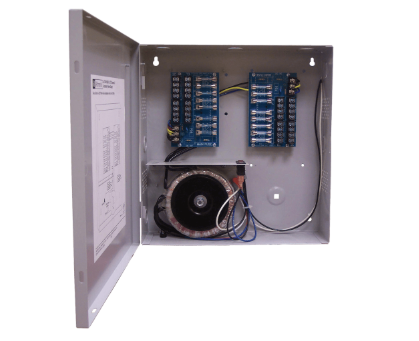

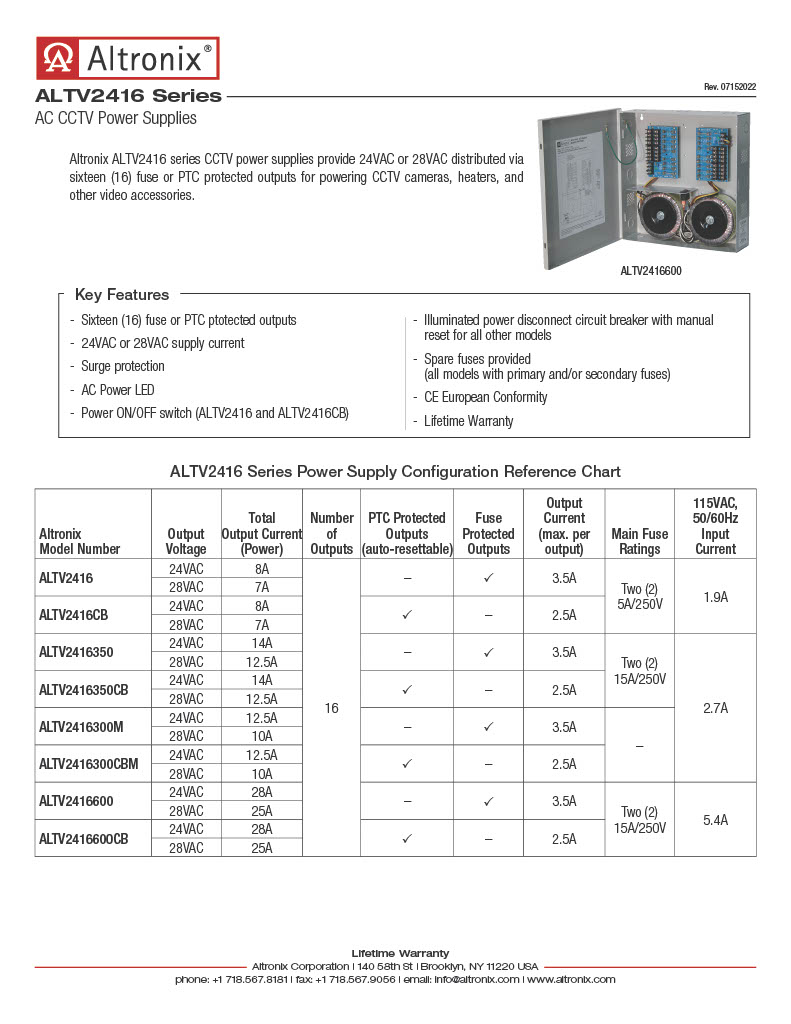

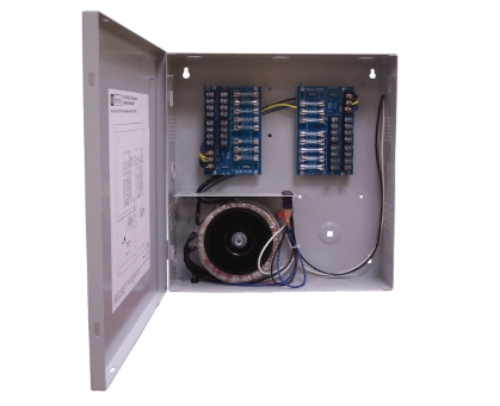

Altronix ALTV2416350 CCTV Power Supply, Input 115VAC 50/60Hz at 2.7A, 16 Fuse Protected Outputs, 24VAC at 14A or 28VAC at 12.5A, Grey Enclosure

Altronix ALTV2416350 CCTV Power Supply, Input 115VAC 50/60Hz at 2.7A, 16 Fuse Protected Outputs, 24VAC at 14A or 28VAC at 12.5A, Grey Enclosure, Lifetime Warranty

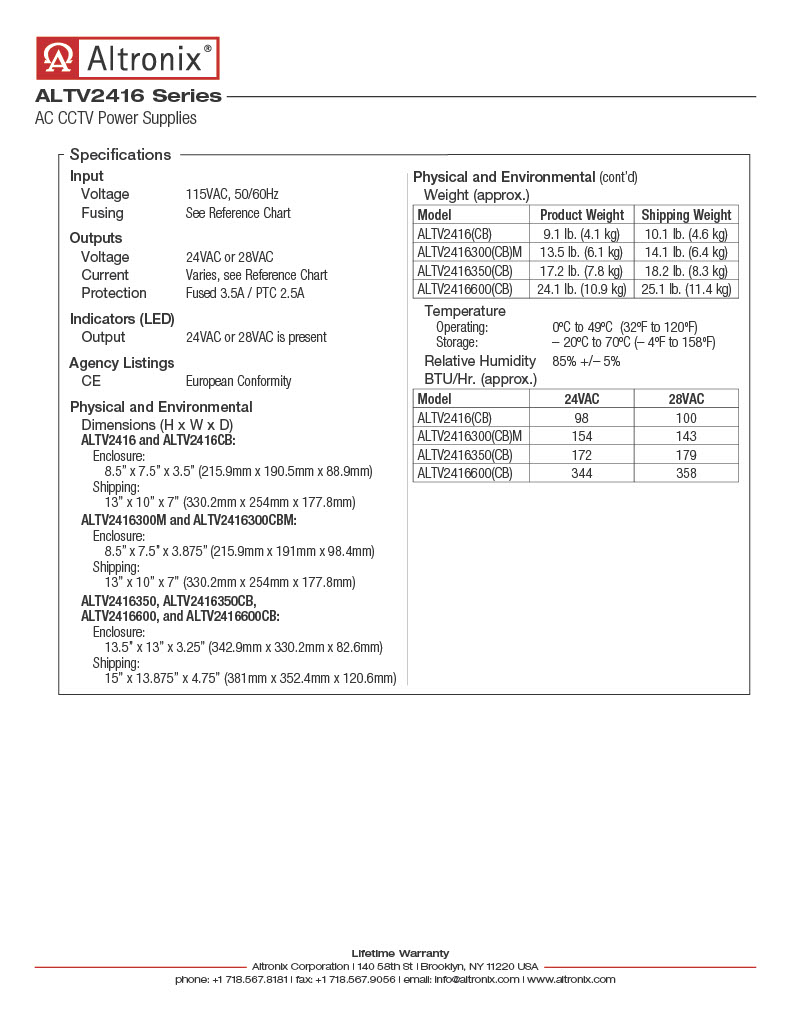

Specifications: Input:

115VAC, 50/60Hz, 2.7A.

Output: 16 fuse protected outputs. 24VAC @ 14A (350VA) supply current (0.875A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.781A per device, 3.5A max.). Outputs are rated @ 3.5A. Surge suppression.

Electrical:

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 24VAC: 172 BTU/Hr. - 28VAC: 179 BTU/Hr. System AC input VA requirement: 310.5VA.

Features: Main fuse rated @ 15A/32V. AC power LED. Spare fuses provided. (all models w/primary and/or secondary fuses).

Enclosure: Wall mount enclosure for indoor use.

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:17.2 Lbs. (7.801 kg). - Shipping Weight: 18.2 Lbs. (8.255 kg).
