Cal Royal SC8453LG US32D Heavy Duty Grade 1, Entrance Ligature Resistant Mortise Lockset - Stainless steel

SC8453LG
SC8453LG
naxt
prev

Product Details

Cal Royal SC8453LG*US32DHeavy Duty Grade 1, EntranceLigature Resistant Mortise Lockset - Stainless steel*

For Trims Styles Click here

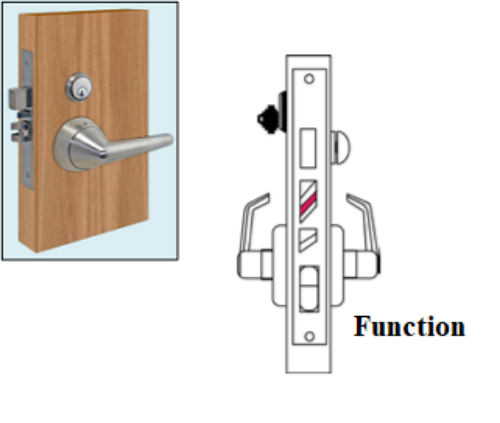

Function: ANSI  F20 - Entrance- Latch bolt retracted by lever from either side unless outside lever is locked by operating toggle button. Deadbolt projected by key from outside or by thumbturn from inside. Both deadbolt and latch bolt are retracted by inside lever simultaneously. Latch bolt is deadlocked when outside lever is locked or when deadbolt is projected. Outside lever is unlocked by toggle button if deadbolt is retracted. Inside lever is always free for immediate egress.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8453LG, SC8453LG US32D Heavy Duty Grade 1, Office / Entrance Ligature Resistant Mortise Lockset -Stainless steel, SC8453LG, SC8453LGLGK, SC8453LGLGX, SC8453LGLGS, SC8453LGLGE, SC8453LG US32D, SC8453LGUS32D, SC8453LGLGKUS32D, SC8453LGLGXUS32D, SC8453LGLGSUS32D, SC8453LGLGEUS32D,

Cal Royal SC8453LG US32D Heavy Duty Grade 1, Entrance Ligature Resistant Mortise Lockset - Stainless steel

SKU: SC8453LG

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$737.46

Trim *

LGK
LGK
LGS [+$40.25]
LGS [+$40.25]
LGX [+$161.83]
LGX [+$161.83]
LGE [+$201.29]
LGE [+$201.29]

Cylinder *

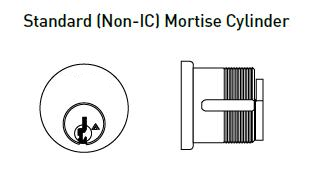

Conventional Mortise Cylinder (Standard)
Conventional Mortise Cylinder (Standard)

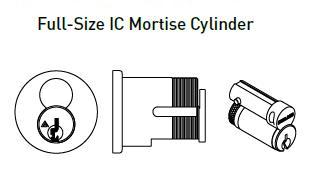

IC - Mortise housing - For SFIC (Best) [+$25.56]
IC - Mortise housing - For SFIC (Best) [+$25.56]
ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]

About this item



Resources

Cal Royal SC8453LG*US32DHeavy Duty Grade 1, EntranceLigature Resistant Mortise Lockset - Stainless steel*

For Trims Styles Click here

Function: ANSI  F20 - Entrance- Latch bolt retracted by lever from either side unless outside lever is locked by operating toggle button. Deadbolt projected by key from outside or by thumbturn from inside. Both deadbolt and latch bolt are retracted by inside lever simultaneously. Latch bolt is deadlocked when outside lever is locked or when deadbolt is projected. Outside lever is unlocked by toggle button if deadbolt is retracted. Inside lever is always free for immediate egress.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8453LG, SC8453LG US32D Heavy Duty Grade 1, Office / Entrance Ligature Resistant Mortise Lockset -Stainless steel, SC8453LG, SC8453LGLGK, SC8453LGLGX, SC8453LGLGS, SC8453LGLGE, SC8453LG US32D, SC8453LGUS32D, SC8453LGLGKUS32D, SC8453LGLGXUS32D, SC8453LGLGSUS32D, SC8453LGLGEUS32D,

SC8453LG
Cal Royal SC8453LG US32D Heavy Duty Grade 1, Entrance Ligature Resistant Mortise Lockset - Stainless steel

Product code: SC8453LG

In Stock

$737.46

$737.46



SC8453LG
Cal Royal SC8453LG US32D Heavy Duty Grade 1, Entrance Ligature Resistant Mortise Lockset - Stainless steel

Product code: SC8453LG

In Stock

$737.46

$737.46
