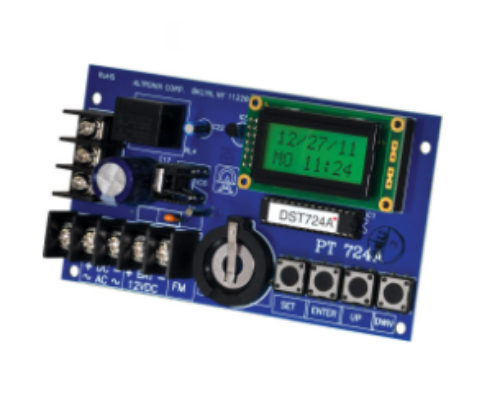

Altronix PT724A Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display, Battery Charger, Board

Altronix PT724A Annual Event Timer Board, 365 Day 24 Hour, 12/24VAC/DC Input, Form C Relay Contacts rated 120VAC/28VDC at 10A

PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.

Input: Voltage 12 or 24VAC or VDC operation.

Relay: Contact Rating:Form "C" 10A/120VAC or 28VDC contacts. Standby Current:10mA (relay off).                           50mA (relay on). Timer: - EE Prom memory protects against loss of programming due to power failure. - Accurate crystal controlled clock. - Momentary and/or Latching Events. - 50 individually programmed daily/weekly events. - Block programming capacity can accommodate a total of 350 events per week. - 10 programmable Holiday dates. - "First man in" option. - Standard or Daylight Savings Time settings. - Automatic compensation for leap year.

Indicators (LCD): Alphanumeric LCD display simplifies programming.

Back-up Battery (not included): Type Sealed lead acid or gel type. Failover Upon AC loss, instantaneous. Optional lithium battery (Altronix LB2032 ) backup maintains clock.

Physical and Environmental: Dimensions:(L x W x H)  5.25" x 3" x 1" (133.35mm x 76.2mm x 25.4mm). Product Weight:0.48 lbs. (0.22 kg). Shipping Weight:0.5 lbs. (0.23 kg). Temperature:  Operating: -20 C to 49 C (-4 F to 120 F).  Storage: -25 C to 70 C (-13 F to 158 F). Relative Humidity:85% +/-5%.

PT724AAltronix, AltronixPT724A, PT724A Altronix, Altronix PT724A, PT724A, Altronix Single Channel Annual Event Timer
