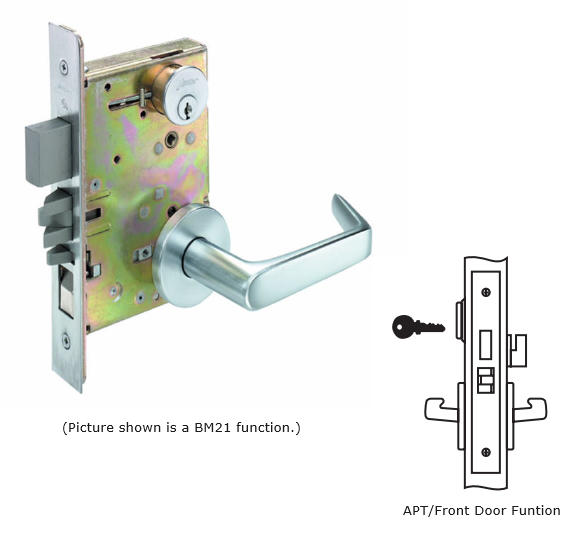

Arrow BM13 Front Door Lock - ANSI F21

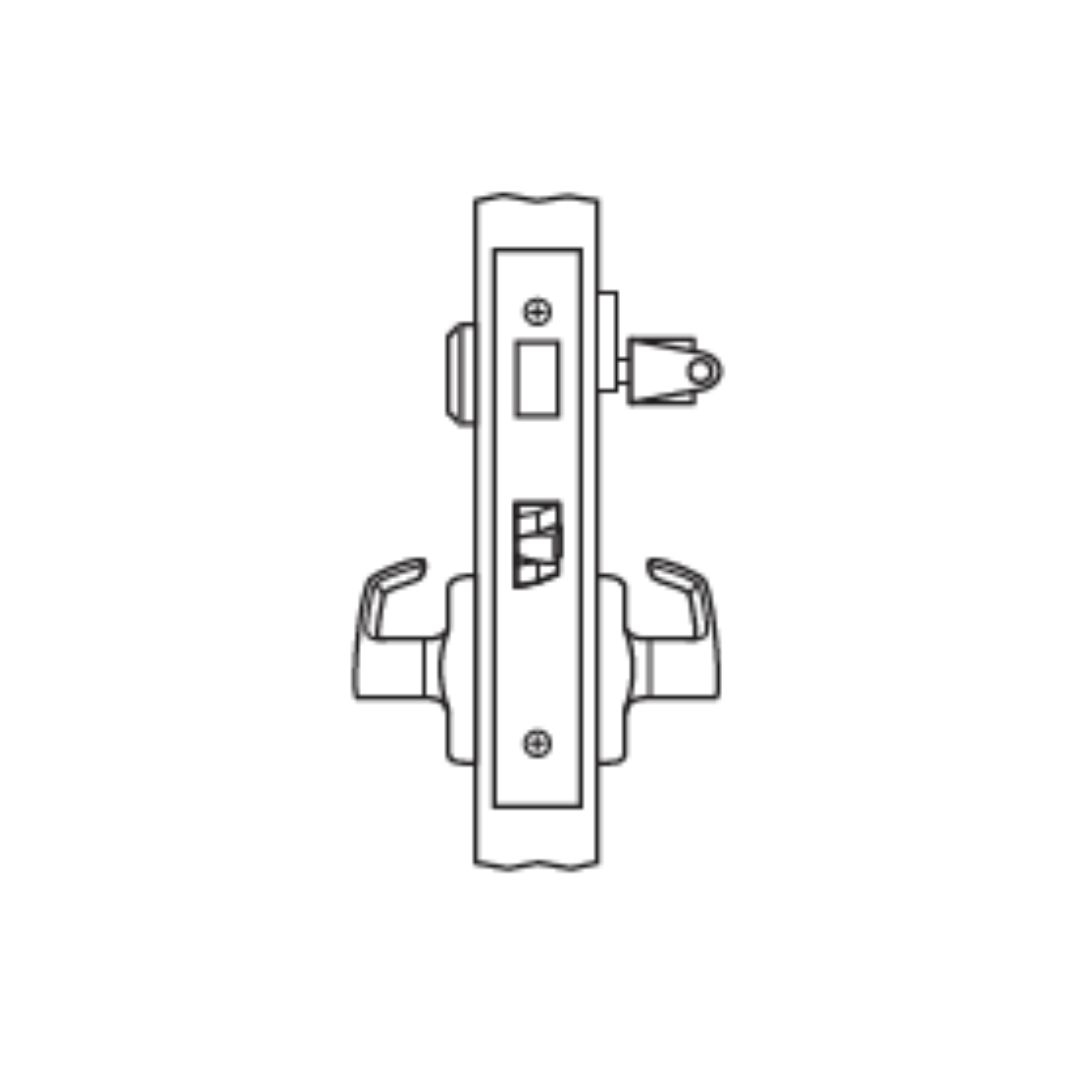

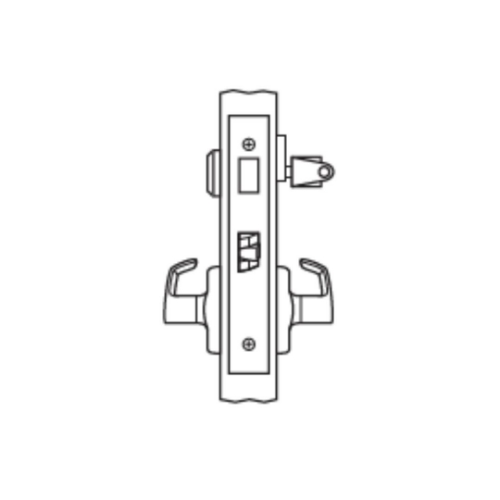

Latchbolt operated by lever either side. Deadbolt operated by key outside and turnpiece inside. When deadbolt is projected, key outside will retract deadbolt, then latchbolt.
BM/AM Series Features:
Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
Hub Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).
Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.

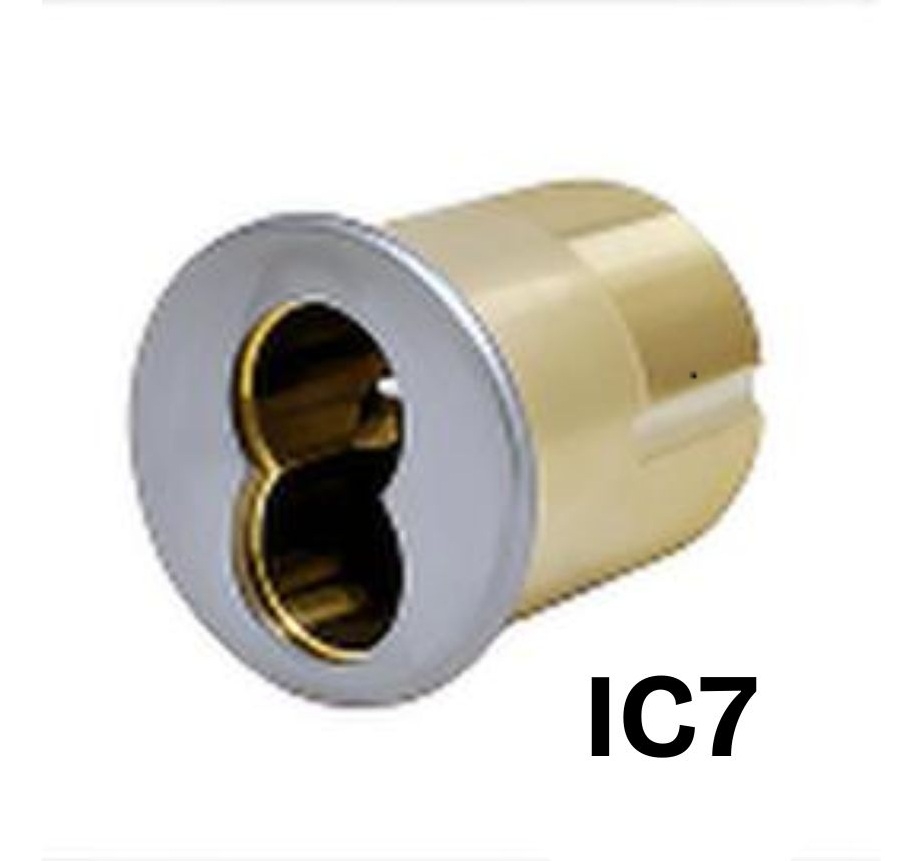

Keyway - A keyway standard.
Keys: Two nickel silver standard.
Warranty: Five-year limited.

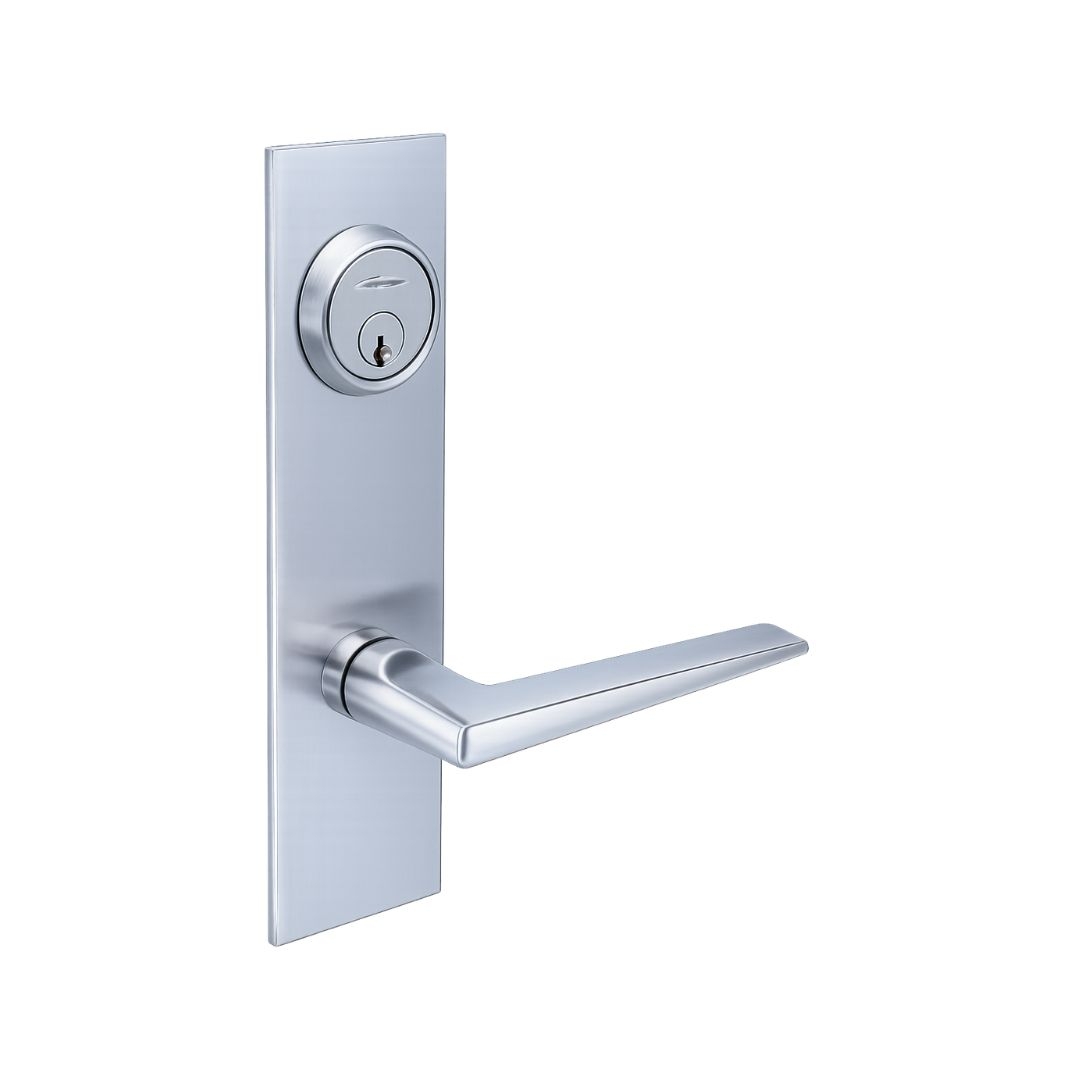

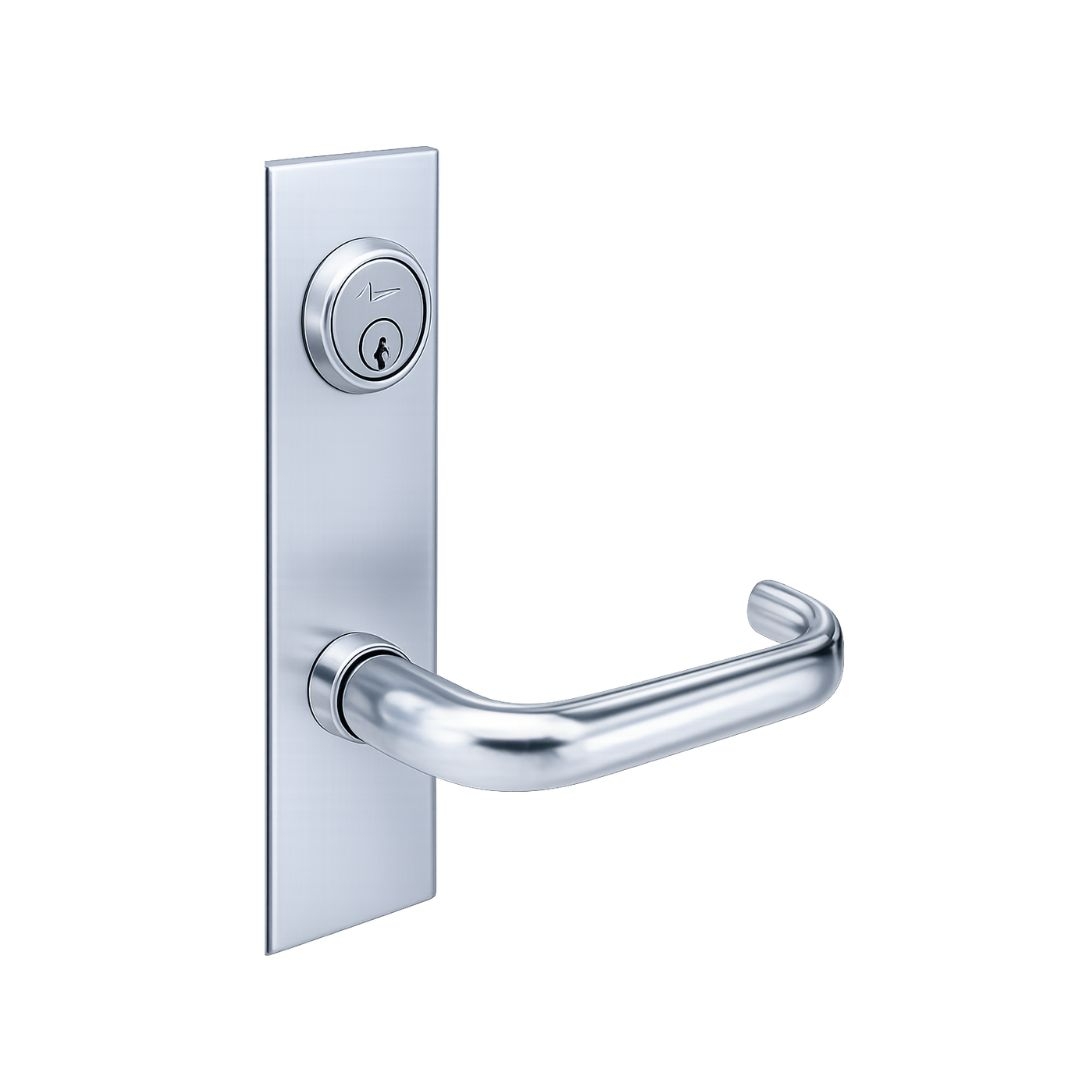

Model: Arrow BM13, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM13XH, BM13VH, BM13JH, BM13HSH, BM13XH26D, BM13XHUS26D, BM13XH03, BM13XHUS3, BM13XH10B, BM13XHUS10B, BM13XH10, BM13XHUS10, BM13VH26D, BM13VHUS26D, BM13VH03, BM13VHUS3, BM13VH10B, BM13VHUS10B, BM13VH10, BM13VHUS10, BM13JH26D, BM13JHUS26D, BM13JH03, BM13JHUS3, BM13JH10B, BM13JHUS10B, BM13JH10, BM13JHUS10,BM13VHD26D, BM13HSHUS26D, BM13HSH03, BM13HSHUS3, BM13HSH10B, BM13HSHUS10B, BM13HSH10, BM13HSHUS10 BM13BRHUS26D, BM13BRH03, BM13BRHUS3, BM13BRH10B, BM13BRHUS10B, BM13BRH10, BM13BRHUS10 BM13XLUS26D, BM13XL03, BM13XLUS3, BM13XL10B, BM13XLUS10B, BM13XL10, BM13XLUS10 BM13VLUS26D, BM13VL03, BM13VLUS3, BM13VL10B, BM13VLUS10B, BM13VL10, BM13VLUS10 BM13JLUS26D, BM13JL03, BM13JLUS3, BM13JL10B, BM13JLUS10B, BM13JL10, BM13JLUS10 BM13HSLUS26D, BM13HSL03, BM13HSLUS3, BM13HSL10B, BM13HSLUS10B, BM13HSL10, BM13HSLUS10 BM13BRLUS26D, BM13BRL03, BM13BRLUS3, BM13BRL10B, BM13BRLUS10B, BM13BRL10, BM13BRLUS10.
