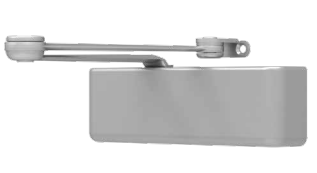

LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
naxt
prev

Product Details

LCN 4511 EDA Extra Duty Arm, High Security Closer - Mounting Hinge (Pull Side)

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Extra duty

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Reveal: Should not exceed 1/8˝ (3 mm)

Top Rail: Less than 3-1/2˝ (89 mm), requires PLATE 4510-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame: Less than 1˝ (25 mm), consultfactory

Clearance: 2-1/4˝ (57 mm) behind door required for installation

Arm Clearance: Above door 1-1/8˝ (29 mm)required

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511cylinder meets ADA requirements

Model: LCN 4511 EDA AVB LH AL, 4511 EDA AVB RH AL

LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

SKU: 4511-EDA

In Stock
Picture for manufacturer LCN
icon Chat

$612.38

Finish *

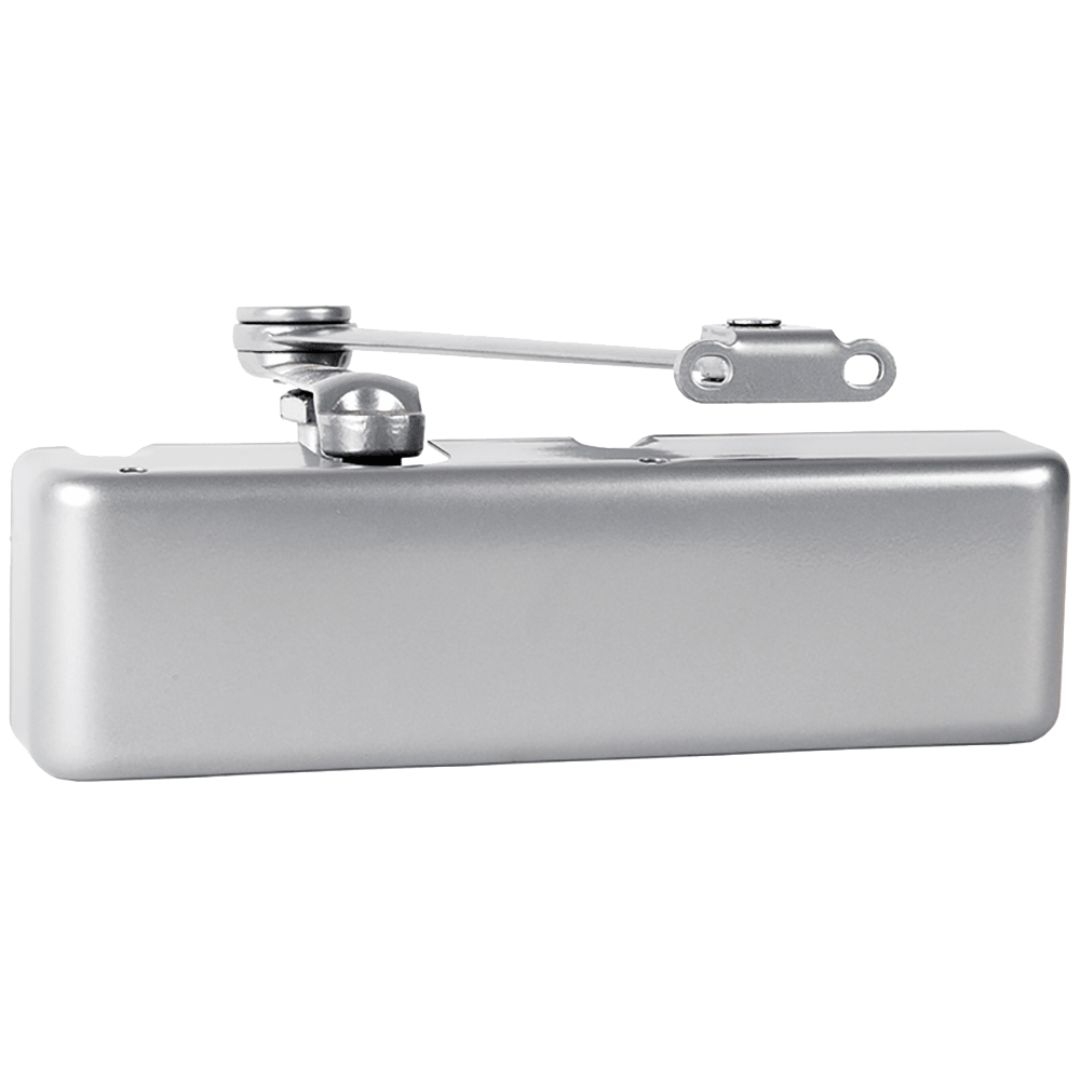

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

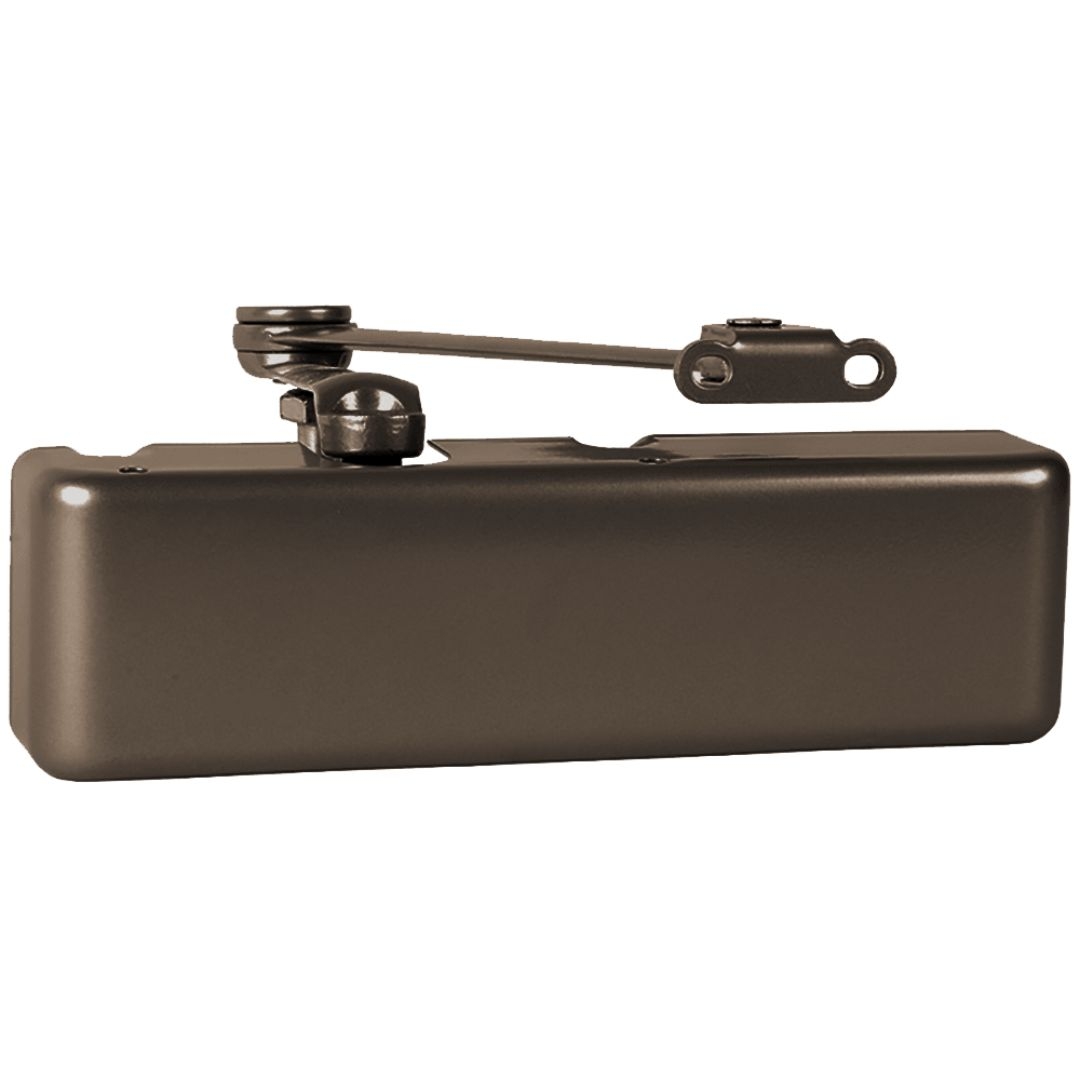

695 - Dark Bronze Painted
695 - Dark Bronze Painted

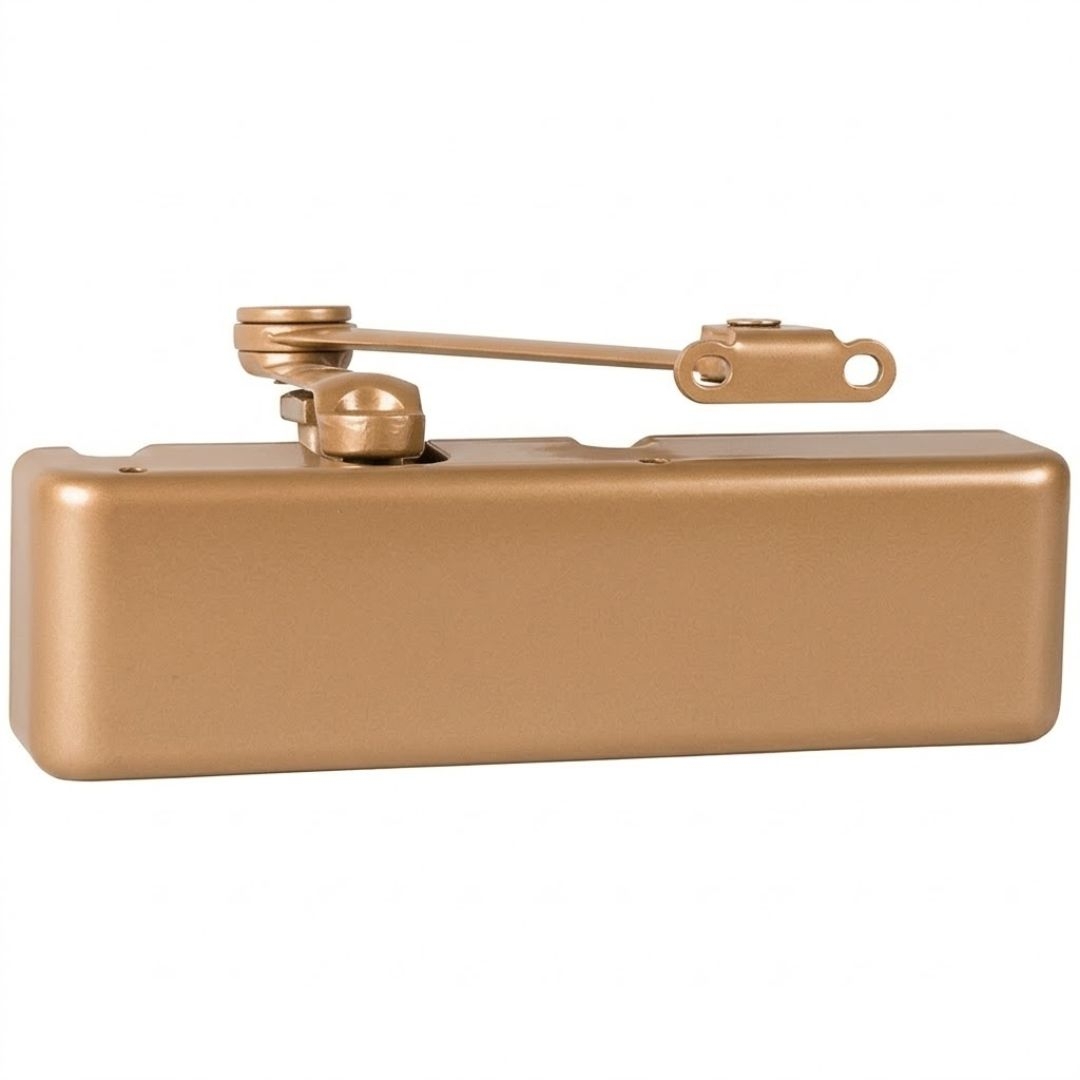

691 - Light Bronze Painted
691 - Light Bronze Painted

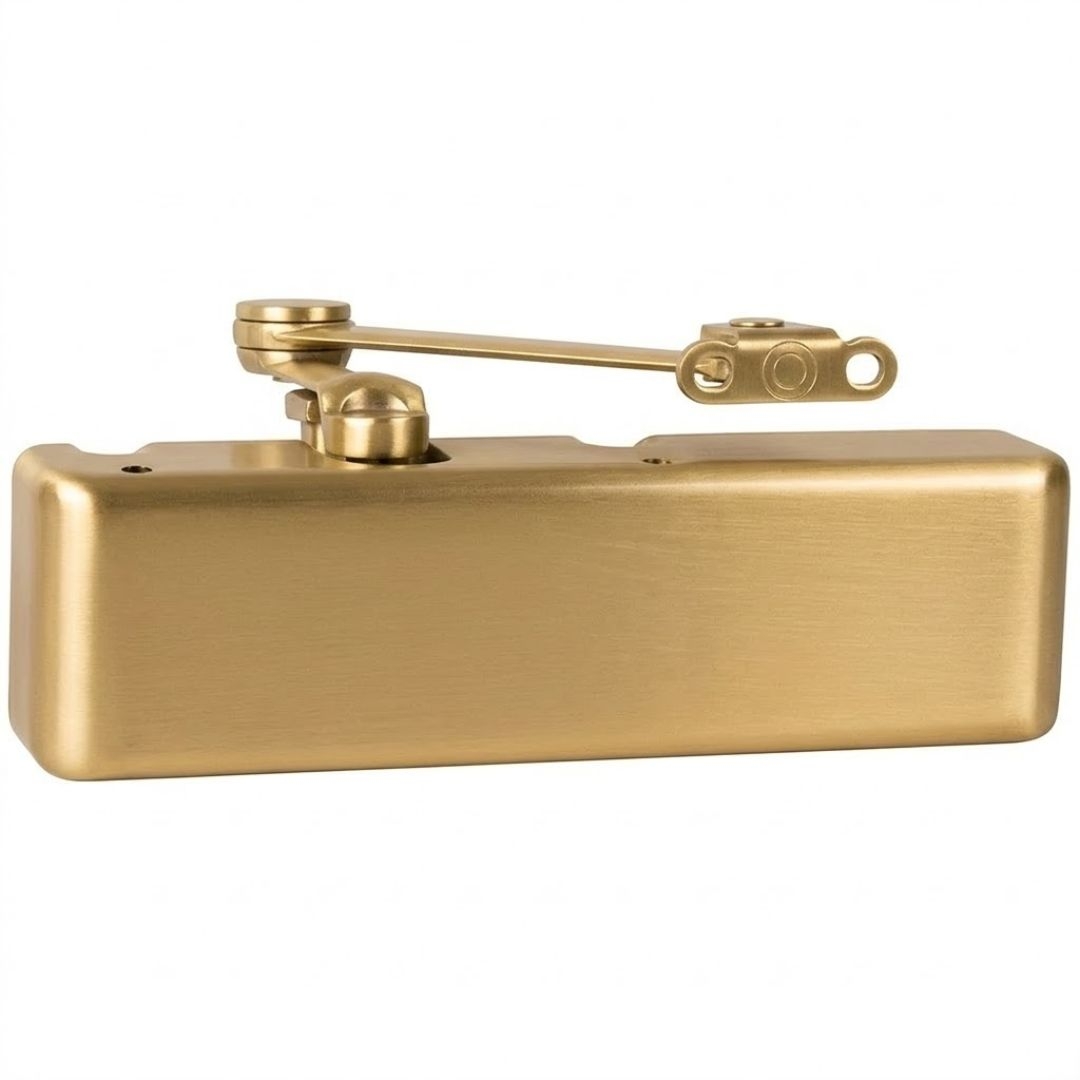

696 - Satin Brass Painted
696 - Satin Brass Painted

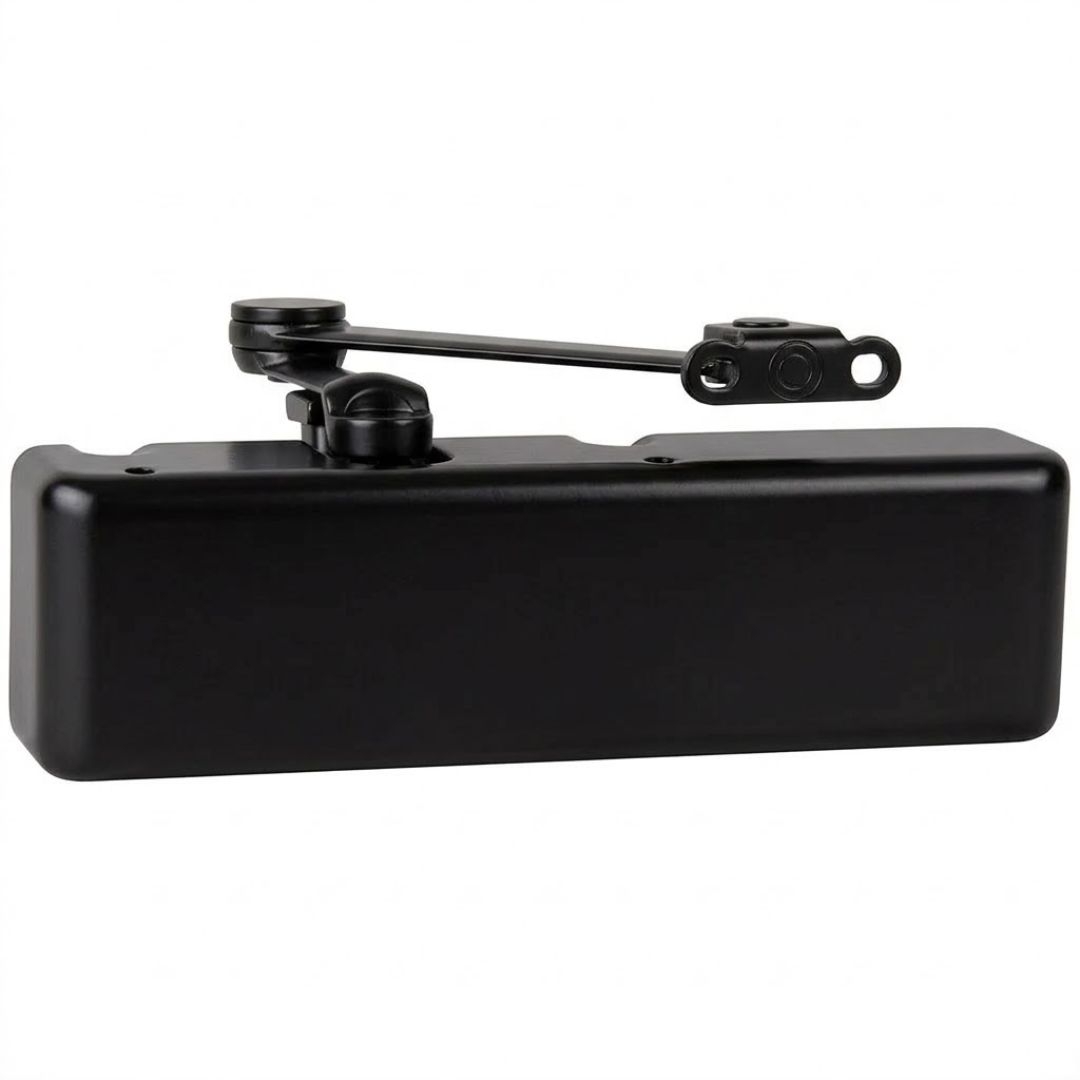

693 - Black Painted
693 - Black Painted

Handing *

About this item

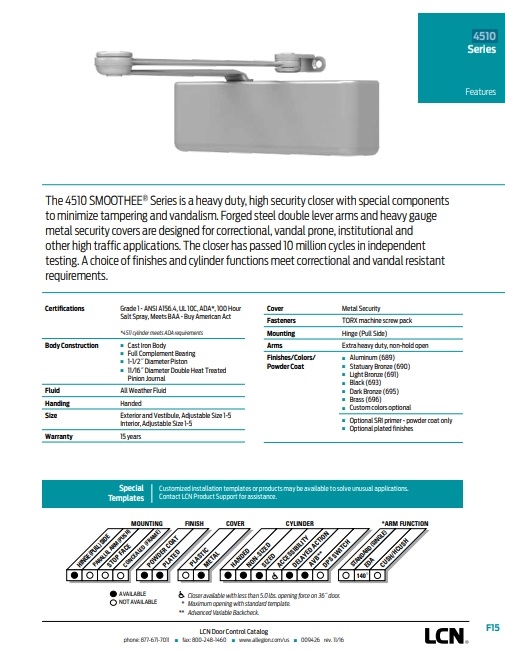

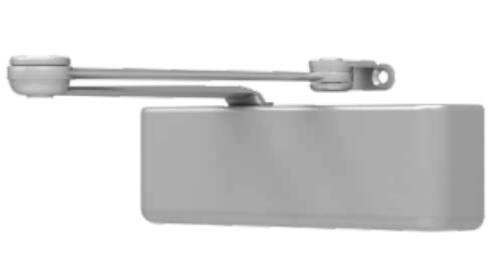

The 4510 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.



Resources

LCN 4511 EDA Extra Duty Arm, High Security Closer - Mounting Hinge (Pull Side)

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Extra duty

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Reveal: Should not exceed 1/8˝ (3 mm)

Top Rail: Less than 3-1/2˝ (89 mm), requires PLATE 4510-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame: Less than 1˝ (25 mm), consultfactory

Clearance: 2-1/4˝ (57 mm) behind door required for installation

Arm Clearance: Above door 1-1/8˝ (29 mm)required

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511cylinder meets ADA requirements

Model: LCN 4511 EDA AVB LH AL, 4511 EDA AVB RH AL

Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

Product code: 4511-EDA

In Stock

$612.38

$612.38

Picture of LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)
LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

Product code: 4511-EDA

In Stock

$612.38

$612.38

LCN 4511 EDA High Security Closer - Mounting Hinge (Pull Side)

SKU: 4511-EDA
