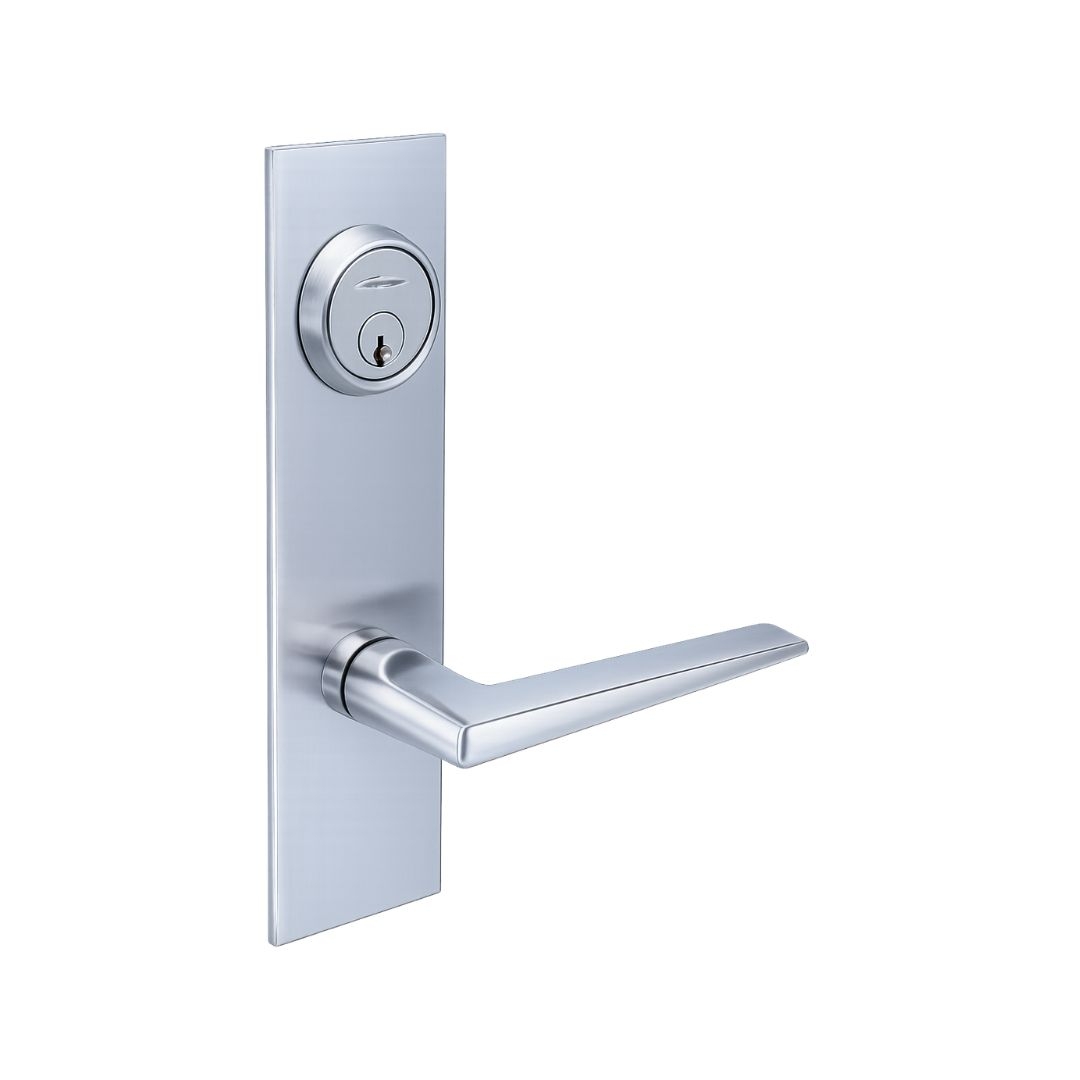

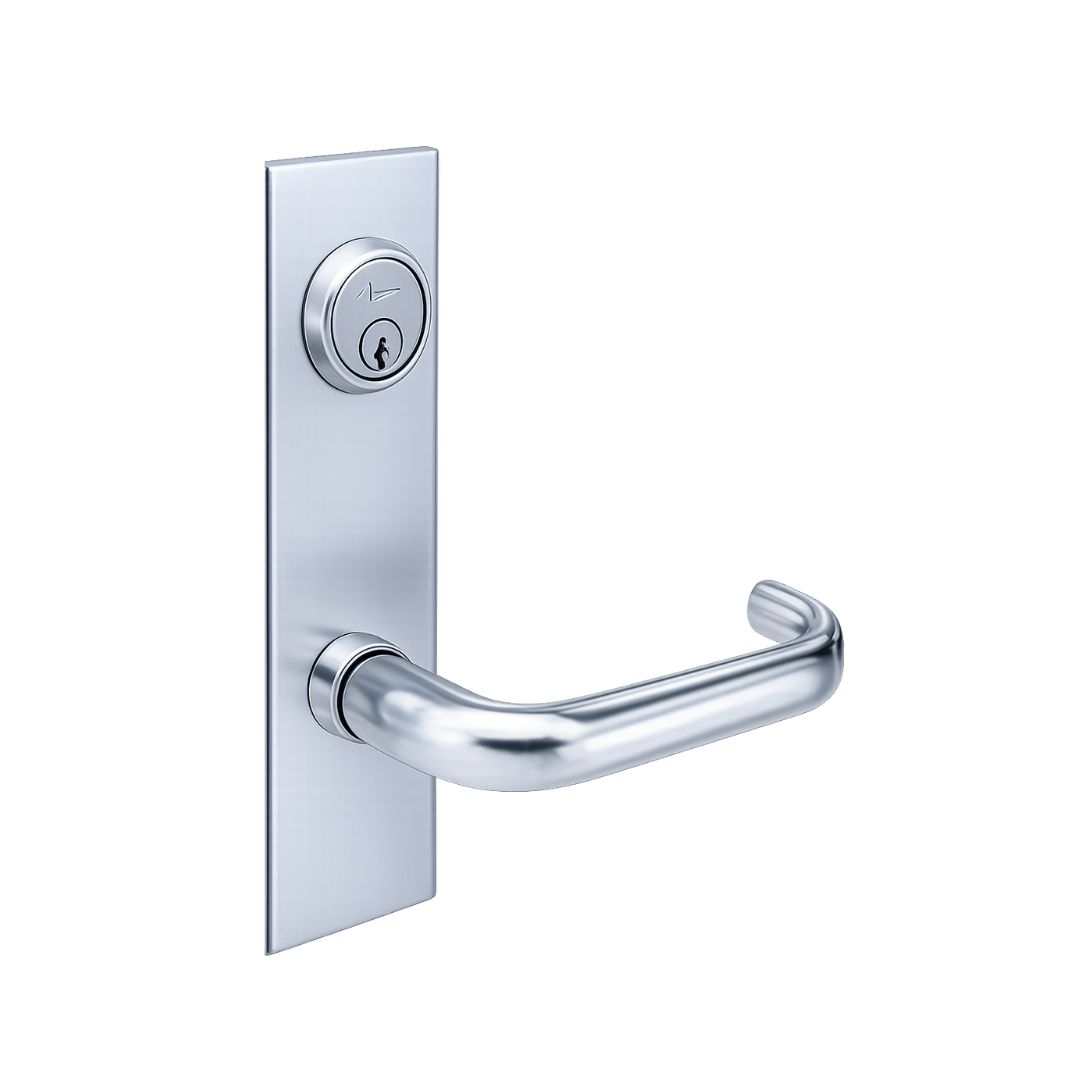

Arrow BM23 Vestibule Mortise Lock

Arrow BM23 Vestibule Lock

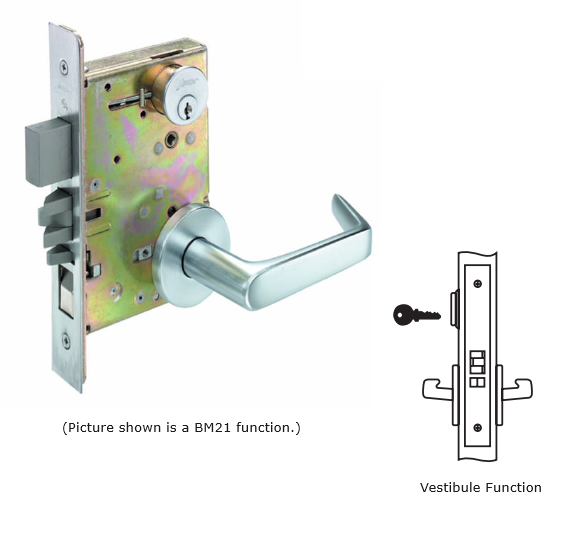

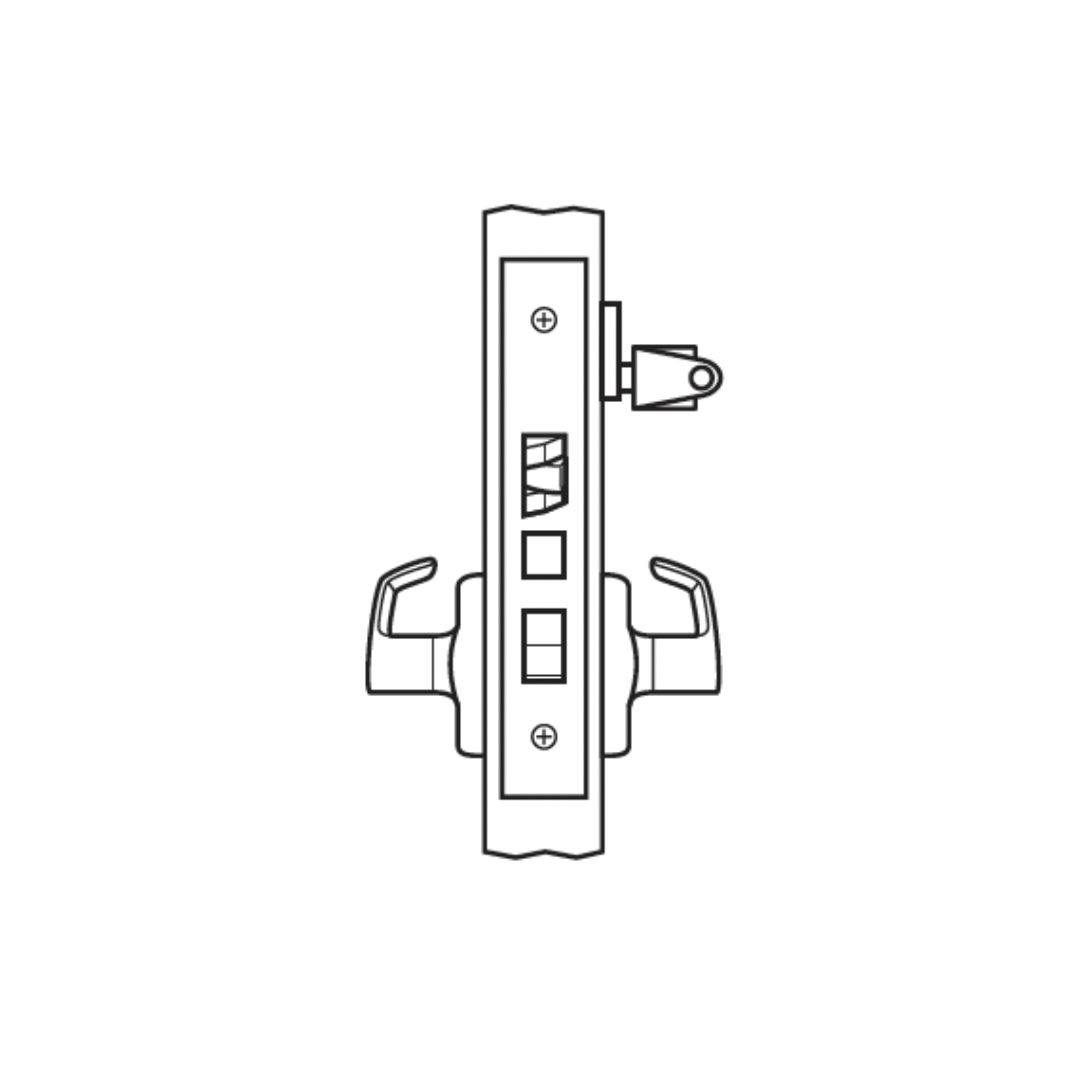

Latchbolt operated by lever either side, except when outside lever is locked by stopworks in lock front then operated by key outside.

BM/AM Series Features:

Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

Door Thickness: 1-3/4" (4mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.

Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

Hub Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).

Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).

Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.

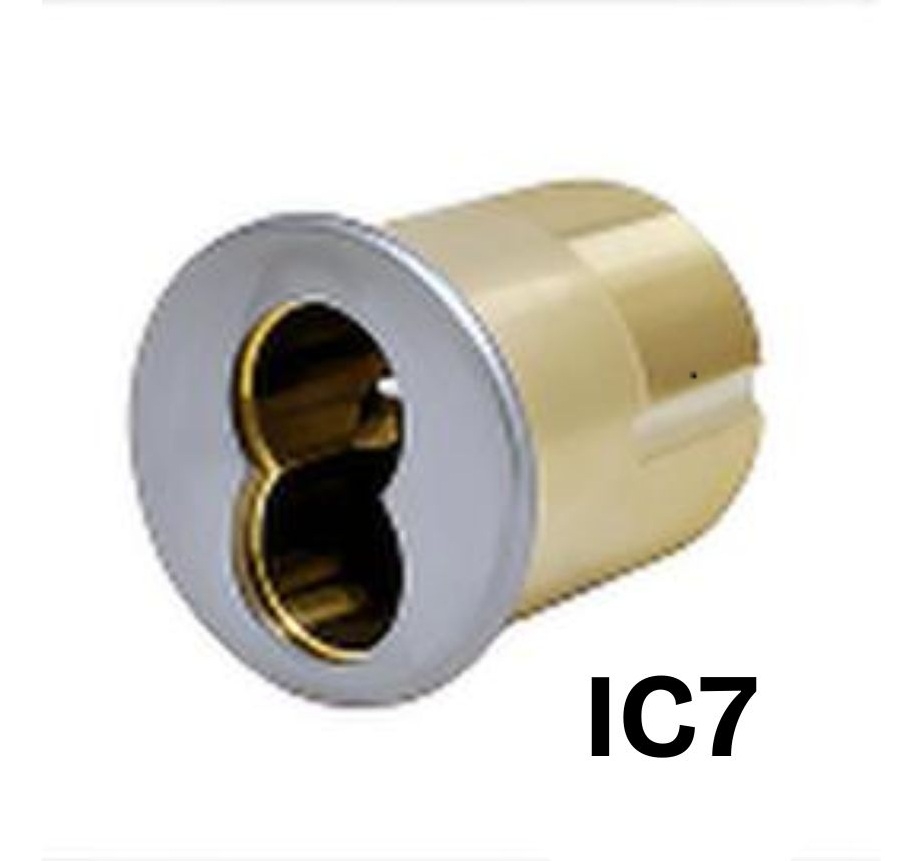

Keyway - A keyway standard.

Keys: Two nickel silver standard.

Warranty: Five-year limited.

Model: Arrow BM23, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM23XH, BM23VH, BM23JH, BM23HSH, BM23XH26D, BM23XHUS26D, BM23XH03, BM23XHUS3, BM23XH10B, BM23XHUS10B, BM23XH10, BM23XHUS10, BM23VH26D, BM23VHUS26D, BM23VH03, BM23VHUS3, BM23VH10B, BM23VHUS10B, BM23VH10, BM23VHUS10, BM23JH26D, BM23JHUS26D, BM23JH03, BM23JHUS3, BM23JH10B, BM23JHUS10B, BM23JH10, BM23JHUS10,BM23VHD26D, BM23HSHUS26D, BM23HSH03, BM23HSHUS3, BM23HSH10B, BM23HSHUS10B, BM23HSH10, BM23HSHUS10 BM23BRHUS26D, BM23BRH03, BM23BRHUS3, BM23BRH10B, BM23BRHUS10B, BM23BRH10, BM23BRHUS10 BM23XLUS26D, BM23XL03, BM23XLUS3, BM23XL10B, BM23XLUS10B, BM23XL10, BM23XLUS10 BM23VLUS26D, BM23VL03, BM23VLUS3, BM23VL10B, BM23VLUS10B, BM23VL10, BM23VLUS10 BM23JLUS26D, BM23JL03, BM23JLUS3, BM23JL10B, BM23JLUS10B, BM23JL10, BM23JLUS10 BM23HSLUS26D, BM23HSL03, BM23HSLUS3, BM23HSL10B, BM23HSLUS10B, BM23HSL10, BM23HSLUS10 BM23BRLUS26D, BM23BRL03, BM23BRLUS3, BM23BRL10B, BM23BRLUS10B, BM23BRL10, BM23BRLUS10.

Certification / Compliance

ANSI: Meets A156.13 Series 1000, Operational Grade 1.

Federal: Meets FF-H-106C, Series 86 and 87.

UL/ULC Positive Pressure: All locks listed for A Label and lesser class doors, 4" (122cm) x 10" (305cm) single or 8" (244cm) x 10" (305cm) pair. Letter F and UL symbol on armored front indicate listing. California State

Reference Code: All levers with returns comply; levers return to within 1/2" (13mm) of door face.

Acceptable Door Hardware: Section 4.13.9 Handles, pulls, latches and other operating devices on accessible doors shall have a shape that is easy to grasp with one hand and does not require grasping, tight pinching or twisting of the wrist to operate. Lever operated mechanisms, push-type mechanisms and U shaped handles are acceptable designs.

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.
