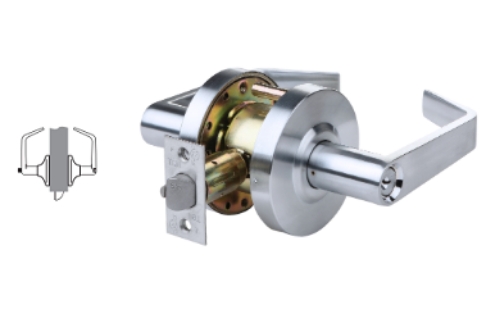

Tell LC2676 CTL Grade 2 Privacy Lock

Tell LC2676 CTL Grade 2 Privacy Lock

Latchbolt operated by lever from either side Outside lever locked by push button on insideUnlocked by emergency release on outside,  rotating inside lever, or closing door

Lever:Non-handed

Latch:1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)

Thru-bolts:Thru-bolts standard. Removable available.

Backset:2-3/8" or 2-3/4

Strike:Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. T Strike (1-1/8" x 2-3/4"), and F Strike (full lip) available   Door Range: 1-1/2" to 2"   Door Preparation:2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.   Warranty: 1 year limited

Performance:Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code, UL listed for 3 hour fire door

Chassis:Cylindrical, steel-coated w/ zinc dichronate (corrision resistance)
