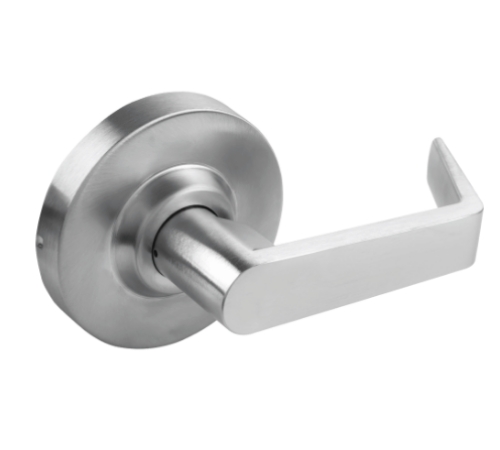

Arrow MLX08 SR - Grade 2 Single Dummy Lever Trim

Arrow MLX08 SR - Grade 2 Single Dummy Lever Trim

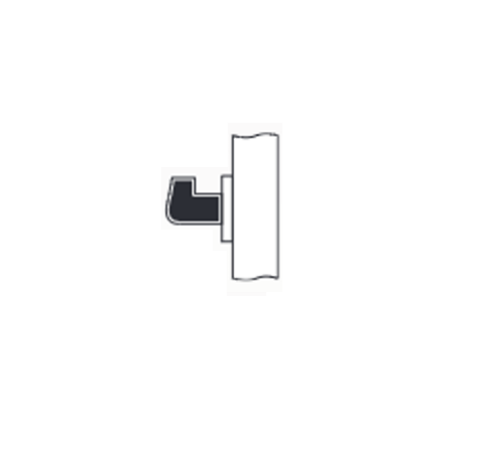

Rigid trim for one side of door only. Used as pull or to match active trim.

Finishes: 03 - Bright Brass - US3 (605), 10BP - Dark Oxide Satin Bronze, Oil Rubbed -  US10BL (614), 26D - Satin Chromium Plated US26D (626)

Lever Design: Sierra SR

ANSI/BHMA: A156.2, Series 4000, Grade 2

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm) standard.

Handing: Non handed.

Model: Arrow, MLX08, MLX08SR, MLXSR0803, MLX08SR10BP, MLXSR26D, MLX08-SR, MLX08-SR-03, MLX08-SR-10B, MLX08-SR-26D

Certification & Compliance:

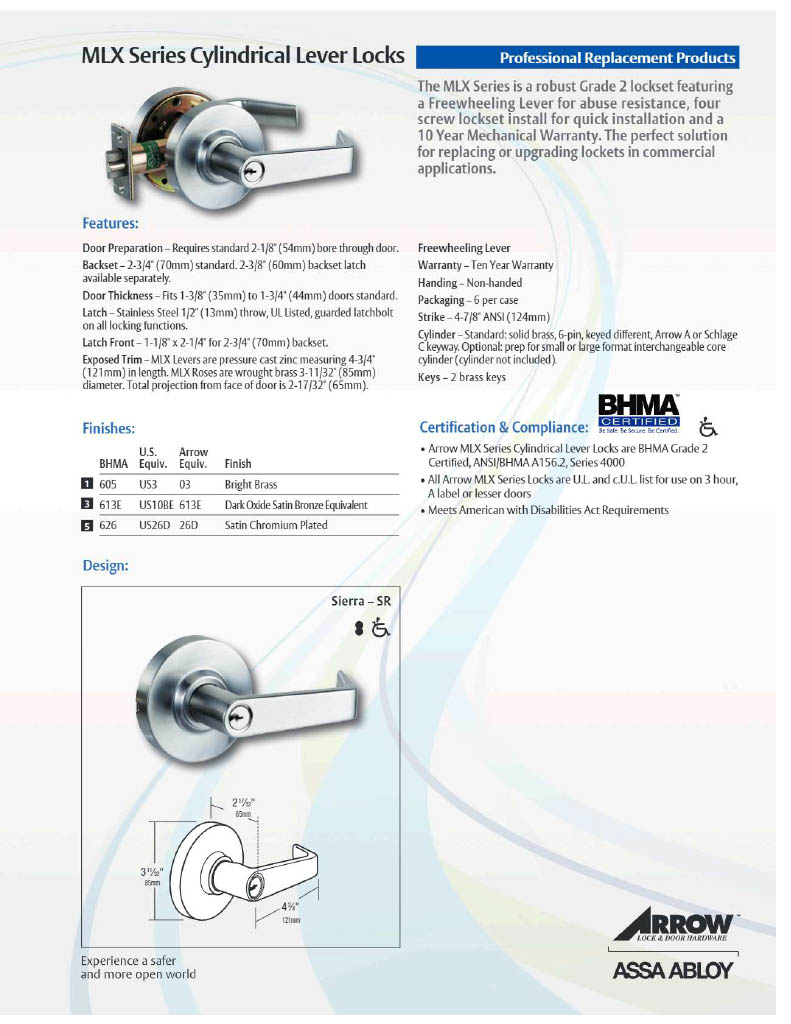

Arrow MLX Series Cylindrical Lever Locks are BHMA Grade 2 Certified, ANSI/BHMA A156.2, Series 4000

All Arrow MLX Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors

Meets American with Disabilities Act Requirements
