BEA 10ACPBDA3 Pneumatic Push Button, Jamb plate, standard 1 5/8" Red button, "Push to Exit" Txt

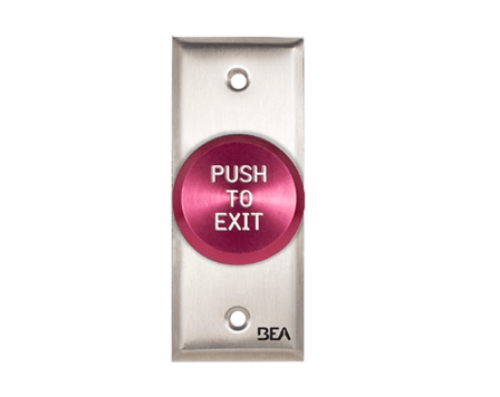

BEA 10ACPBDA3 Pneumatic Push Button, Jamb plate, standard 1 5/8" Red button, "Push to Exit" text, 2.5 AMP 12 to 24 V AC/DC 10ACPBDA3 - 1 5⁄8" Jamb, Red button, Text only.

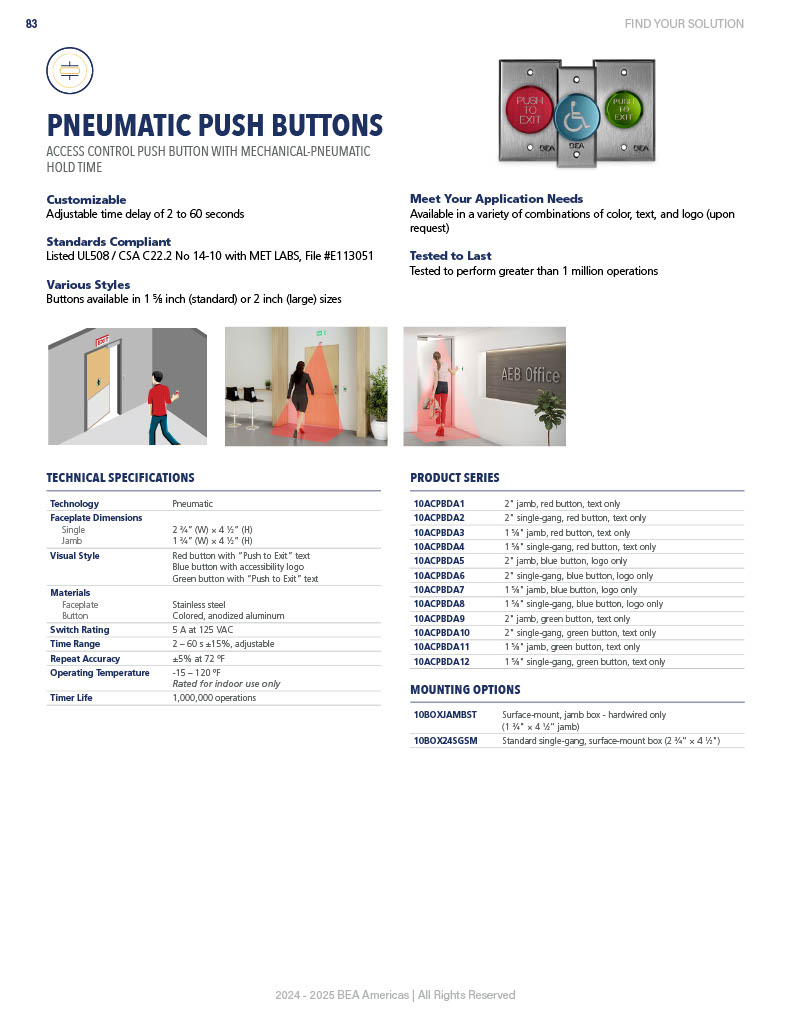

DESCRIPTION BEA's PNEUMATIC PUSH BUTTONS are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications.

The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device.

Upon activation, the user-defined time delay initiates without additional mechanical action or the need of external power.

Customizable Adjustable time delay of 2 - 60 seconds.

Standards Compliant Listed UL 508 / CSA C22.2 No 14-10 with MET LABS, File #E113051.

Various Styles Buttons available in 1 5 ⁄8 inch (standard) or 2 inch (large) sizes.

Meet Your Application Needs Available in a variety of combinations of color, text and logo upon request.

Tested To Last Tested to perform greater than 1 million operations.

TECHNICAL SPECIFICATIONSTechnology:

Pneumatic.

Faceplate Dimensions:   Single - 2 3/4" (W) - 4 1/2" (H).   Jamb - 1 3/4" (W) - 4 1/2" (H).

Visual Style:   Red Button with 'Push to Exit' text.   Blue Button with Handicap Logo.   Green Button with 'Push to Exit' text.

Materials:Stainless steel faceplate with colored, anodized aluminum button.

Switch Rating:5 A @ 125 VAC.

Time Range:2 - 60 s +15%, adjustable.

Repeat Accuracy:+5% @ 72 F.

Operating Temperature:Rated for indoor use only -15 - 120 F.

Timer Life:1 million operations.
