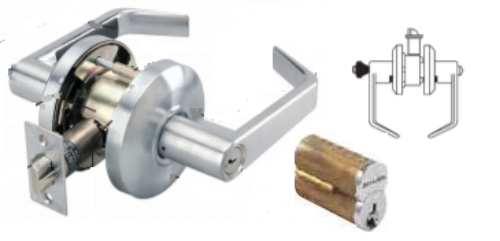

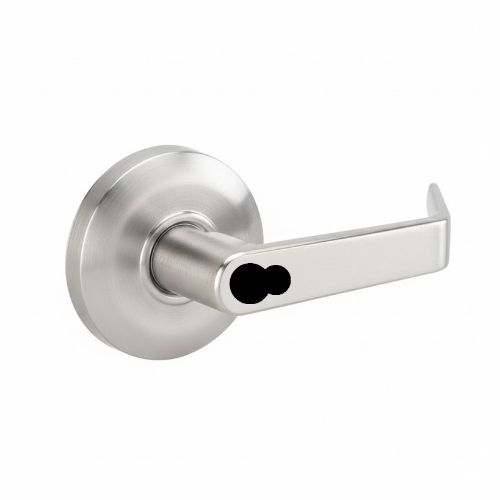

Cal-Royal ICSL00 Entrance/Office Lock - Accepts SFIC Core

Cal-Royal ICSL00 Entrance/Office Lock - Accepts Small-format Interchangeable Core (SFIC) (core not included)

Turn/Push button locking.Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned. ANSI: Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Interchangeable core lockswill accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal ICSL00,Cal-Royal ICSL00US26D,Cal-Royal ICSL00US1,Cal-Royal ICSL00US3,Cal-Royal ICSL00US4,Cal-Royal ICSL00US10,Cal-Royal ICSL00US10BE,Cal-Royal ICSL00US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
