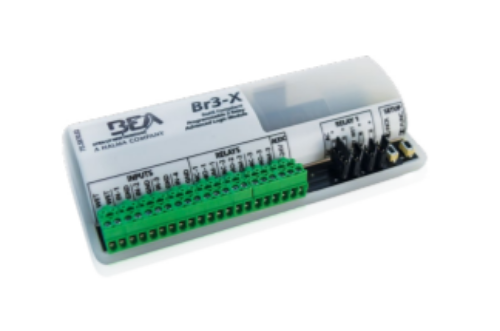

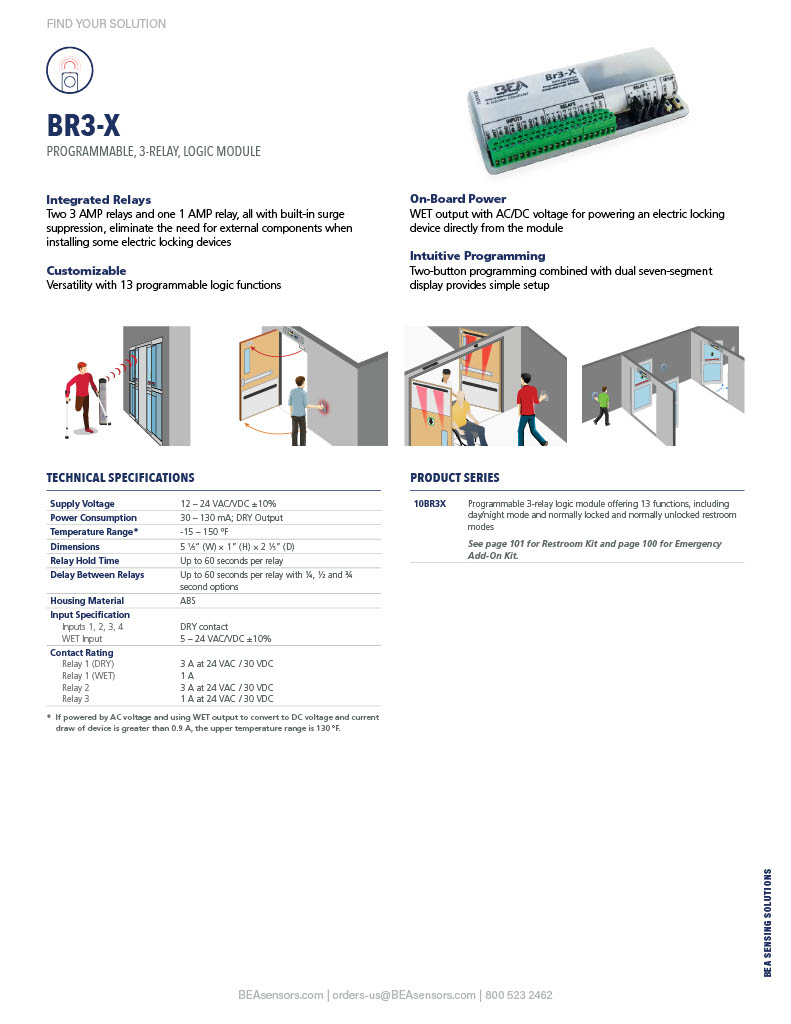

BEA 10BR3-X Logic Module, 13 Programmable Logic Functions, 3 Relays

BEA 10BR3-X Logic Module, 13 Programmable Logic Functions, 3 Relays

Description:

BEA's BR3-X provides both simple and advanced logic controls.

Functions include: timer, ratchet / latching, inhibitor, 2 relay sequencer + inhibitor, 2 relay sequencer + door position deactivation timer, 3 relay sequencer + "1-shot", 3 relay sequencer with "independent relay", interlock timer, interlock ratchet / latching, 2 way 2 relay sequence, normally locked restroom, normally unlocked restroom, 3 relay sequencer + "day / night mode".

Common uses for the BR3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.

Features: * *Customizable: Versatility with 13 programmable logic functions for the BR3-X.

Intuitive programming: Two-button programming combined with dual seven-segment display provides simple setup.

Integrated relays: Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices.

On-board power: WET output with AC / DC voltage for powering an electric locking device directly from the module.

TECHNICAL SPECIFICATIONS:

Supply Voltage:12 - 24 VAC / VDC -10%.

Power Consumption:30 - 130 mA; DRY Output.

Temperature Range:-15 - 150 F.

Dimensions:5 1⁄5" (W) x 1" (H) x 2 1⁄5" (D).

Relay Hold Time:Up to 60 seconds per relay.

Delay Between Relays:Up to 60 seconds per relay with 1/4, 1/2 and 3/4  second options.

Housing Material:ABS Plastic.

Input Specification:   Inputs 1, 2, 3, 4 - DRY contact   WET Input - 5 - 24 VAC / VDC - 10%

Contact Rating:   Relay 1 (DRY): 3 A @ 24 VAC / 30 VDC.   Relay 1 (WET): 1 A.   Relay 2: 3 A @ 24 VAC / 30 VDC.   Relay 3: 1 A @ 24 VAC / 30 VDC.
