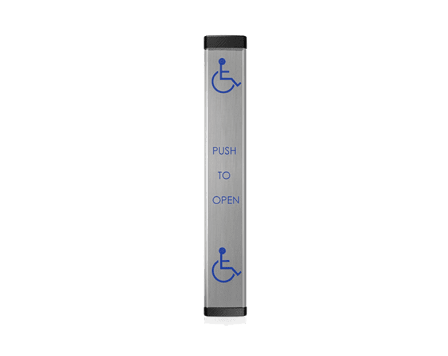

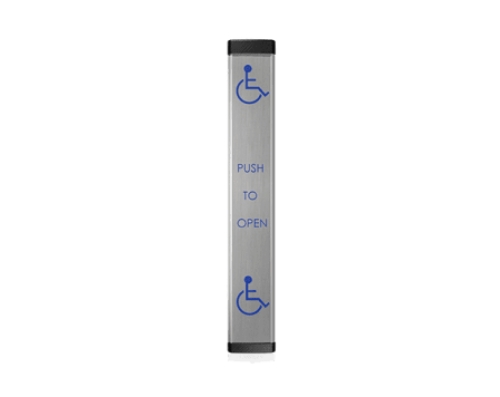

BEA 10LPR36433 Full Length Actuator, 36" High-Low Push Plate, Text & Logo, Integrated 433 MHz Wireless

BEA 10LPR36433 LPR36 - Full Length Actuator, 36" Vertical Actuation Bar, 433 MHz Wireless (Text & Logo), Weather Resistant, Stainless Steel Construction, Wall or Bollard Mounted, Entire Surface Activation * *DESCRIPTION BEA's LPR36 is a 36 inch actuator that exceeds all local ADA building codes requiring high and low actuators, eliminating the need to install two separate devices.

This stainless steel plate utilizes four highly-sensitive membrane switches that require very little force and ensure actuation across the entire surface. This functionality enhances accessibility for those with limited mobility or disabilities. Available in wireless and hard wire versions, the LPR36 can be conveniently.

Enhances Accessibility: Offers a mean of activation of automatic doors for those with limited mobility or disabilities.

Low Profile, Aesthetically Pleasing Design: Low profile (1 inch deep) design helps prevent accidental damage in high traffic areas.

Versatile Mounting: Easily installs on either walls or bollards for maximum mounting flexibility.

Standard Compliant, High Accessbility Plate: Exceeds California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c.

Easily Converts To Wireless: Available with convenient, built-in wireless transmitter (300, 433 or 900 MHz frequencies) for wireless activation applications.

Full Length Activation: Activation area of 36 - 6 inches (216 square inches).

TECHNICAL SPECIFICATIONS:

Contact Configurations:SPST N.O.

Switching Voltage:0.1 - 50 VDC.

Switching Capacity:1 Watt.

Switching Current:0.005 - 100 mA DC.

Operation Temperature:-32 - 212 F (-35 - 100 C).

Material: Base - 6063 Aluminum. Face Plate -304 Stainless Steel. Switch Actuator - Nylon 66. End Cap -UL94 ABS. Hardware -Stainless Steel.

Compliance:California Building Code 2013, Page 559, 11B-404.2.9, Exception 2c

*NOT RECOMMENDED FOR USE IN AN ENVIRONMENT WHERE IT WILL BE DIRECTLY. EXPOSED TO WATER. FOR EXAMPLE, OUTDOOR, NOT PROTECTED FROM DIRECT RAIN.
