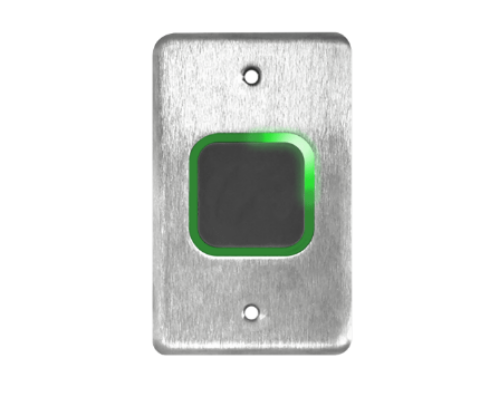

BEA 10MS41-SP Microwave Touchless Actuator - Stainless steel single gang - Plain

BEA 10MS41-SP Microwave Touchless Actuator, Single Gang Plate, Plain, Adjustable 4 to 24 In, 12-24 VAC/DC, Stainless Steel

DESCRIPTION BEA's MAGIC SWITCH Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.

Using microwave technology, BEA's MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.

The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

Durable Faceplate Stainless steel faceplate increases durability and protection from daily cleaning.

Ideal For Harsh Environments IP55 rated enclosure capable of use in industrial and extreme washdown environments.

High-Visibility Animated or static Illuminated ring allows for high-visibility in low light areas.

Adjustable Detection Zone Adjustable sensing zone from 4 to 24 inches (timed or toggle).

Activation Alerts Adjustable audible alert setting, including silent-mode required for hospitals and other noise-sensitive environments.

Adjustable Hold Time Configurable output hold time of 1/2 to 30 seconds allowing unique, user-defined device placement.

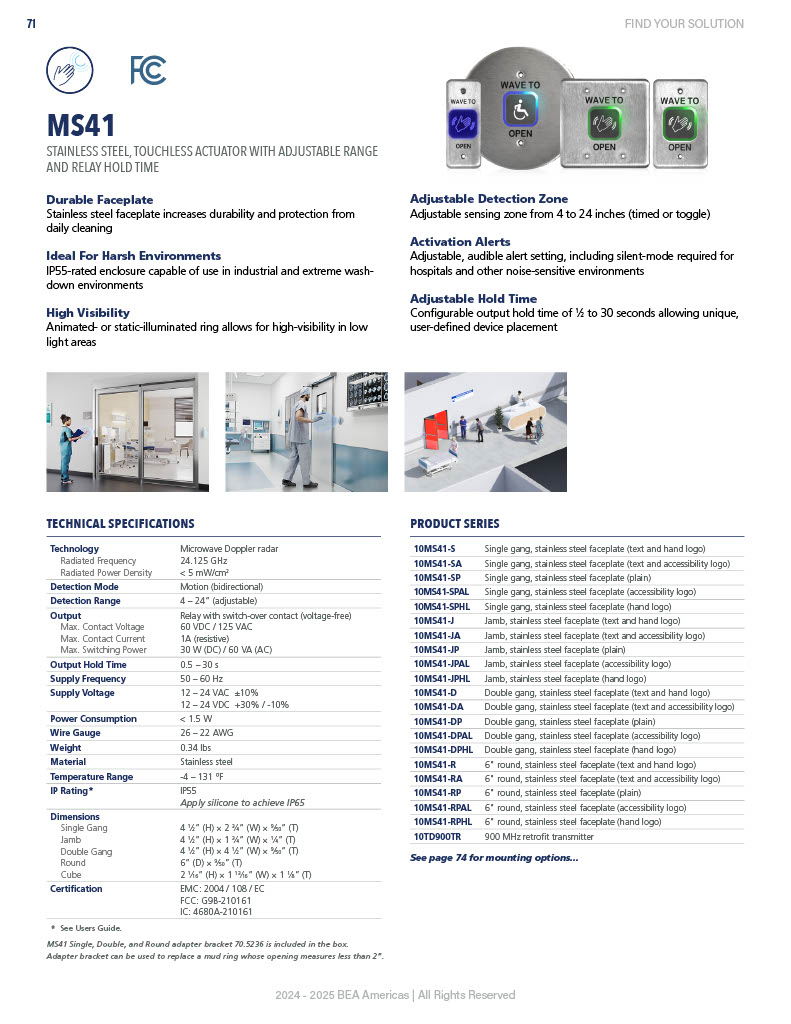

TECHNICAL SPECIFICATIONS * *TechnologyMicrowave - Doppler Radar. Dimensions:Single Gang - 4 1/2" (H) x 2 3/4" (W) x 9⁄50" (T). Radiated Frequency- 24.125 GHz. Radiated Power Density- < 5 mW/cm2. Detection Mode- Motion (bidirectional). Detection Range- 4 - 24" (adjustable). Output- Relay with switch-over contact (voltage-free).   Max. Contact Voltage - 60 VDC / 125 VAC.   Max. Contact Current - 1A (resistive).   Max. Switching Power - 30 W (DC) / 60 VA (AC). Output Hold Time- 0.5 - 30 s. Supply Frequency- 50 - 60 Hz. Supply Voltage:    12 - 24 VAC +10%.   12 - 24 VDC +30% / -10%. Power Consumption- < 1.5 W. Wire Gauge- 26 - 22 AWG. Weight- 0.34 lbs. Material- Stainless Steel. Temperature Range -4 - 131 F. IP Rating- IP55.   Apply silicone to achieve IP65 Certification:   EMC: 2004 / 108 / EC.   FCC: G9B-210161.   IC: 4680A-210161.

• MS41 Single, Double and Round adapter bracket 70.5236 is included in the box. The adapter bracket can be used to replace a mudring whose opening measures less than 2"

Model: BEA's MAGIC SWITCH, BEA Touchless Actuator, BEA Touchless, BEA Actuator,  BEA Microwave Touchless Actuator, BEA Microwave Actuator, BEA Microwave,  BEA  MS41, MS41 BEA, BEA MS41, MS41BEA, MS41, MS41SP, MS41-SP, 10MS41SP, 10MS41-SP, MS41, BEA MS41-SP, BEAMS41-SP, BEA MS41SP, BEAMS41SP,  MS41-SP BEA, MS41-SPBEA,  MS41SP BEA, MS41SPBEA, BEA 10MS41-SP, BEA10MS41-SP, BEA 10MS41SP, BEA10MS41SP,  10MS41-SP BEA, 10MS41-SPBEA,  10MS41SP BEA, 10MS41SPBEA

Dimensions:   Single Gang - 4 1/2" (H) x 2 3/4" (W) x 9⁄50" (T).
