Norton Rixson H340 Heavy-Duty Center Hung Top Pivot

Norton Rixson H340 Heavy-Duty Center Hung Top Pivot

1-Page34-AADSS1009094

Product Details

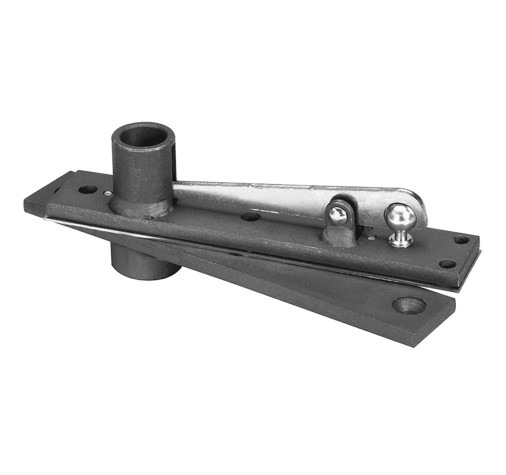

Norton Rixson *H340 Heavy-Duty Center Hung Top Pivot*

Application:

Fully ConcealedHeavy-DutyNon-handed

Description/Features:

Standard top pivot for Model H117-3/4 pivot set. Also used for H28 and H40 Series floor closersCan be used with any floor closer or pivot set with pivot point 2-3/4, or greater, from edge of the doorWalking beam-type pivot – 11/16" (17mm) diameter pivot pin with 3/4" (19mm) engagementHeavy-duty needle bearingCompletely concealed when door is closedFurnished with wood and machine screws

Model: Norton Rixson H340-613, H340-625, H340-626, H340613, H340 625, H340 626,

Norton Rixson H340 Heavy-Duty Center Hung Top Pivot

SKU: H340

In Stock

$476.93

About this item

Top Pivots are used to ensure proper installation and alignment at the top of the door

Resources

Catalog

Norton Rixson *H340 Heavy-Duty Center Hung Top Pivot*

Application:

Fully ConcealedHeavy-DutyNon-handed

Description/Features:

Standard top pivot for Model H117-3/4 pivot set. Also used for H28 and H40 Series floor closersCan be used with any floor closer or pivot set with pivot point 2-3/4, or greater, from edge of the doorWalking beam-type pivot – 11/16" (17mm) diameter pivot pin with 3/4" (19mm) engagementHeavy-duty needle bearingCompletely concealed when door is closedFurnished with wood and machine screws

Model: Norton Rixson H340-613, H340-625, H340-626, H340613, H340 625, H340 626,

H340 626

Norton Rixson H340 Heavy-Duty Center Hung Top Pivot

Product code: H340

In Stock

$720.00

$476.93

H340 626

Norton Rixson H340 Heavy-Duty Center Hung Top Pivot

Product code: H340

In Stock

$720.00

$476.93
