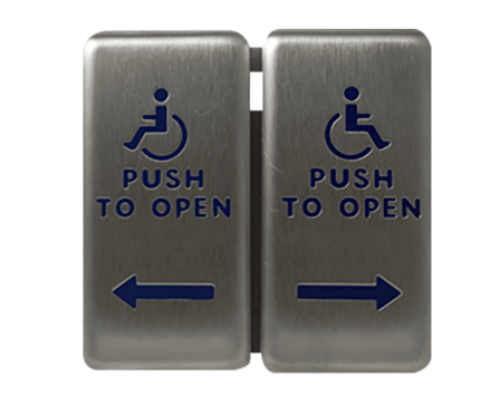

BEA 10PBDGP1 VESTIBULE PUSH PLATE STAINLESS STEEL ACTUATOR

BEA 10PBDGP1 Stainless steel push plate, 4" by 4" dual plate, blue text, logo and arrow, for vestibule, includes adapter ring

BEA's VESTIBULE PUSH PLATE improve overall access, enhance accessibility for those with limited mobility and disabilities and seamlessly integrate with an automatic doors activation.

These ADA-compliant push plates combine two jamb style plates that fit into one double gang mounting box for ease of installation. This push plates may be hard wired to the door operator or connected to BEA's line of wireless transmitters.

TABLE OF SPECIFICATIONS:

FACEPLATE MATERIAL:16 gauge, 304 2B Stainless Steel.

BACKPLATE MATERIAL:1⁄8" thick, Aluminum.

MOUNTING SCREWS:Stainless Steel, 6-32 x 1" & 8-32 x 1". Allen Head Size: 5⁄64.

CHERRY SWITCH:Single-pole, 15 A, COM / NO / NC, UL Recognized.

COMPATIBLE WIRELESS FREQUENCIES:900, 433 or 300 MHz.

FACEPLATE DIMENSIONS:4 3/4" (W) x 4 3/4" (H) x 31⁄50" (D).
