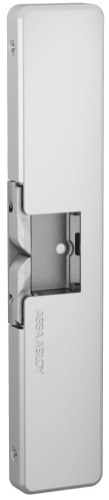

HES 9500-630 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated, Satin Stainless Steel

HES 9500-630 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated, Satin Stainless Steel

The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.

The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

Standard Features

Installs in metal or wood frames

Separate base and decorative cover for easy adjustments

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 1,000,000 cycles

Field selectable fail safe/fail secure

Dual voltage 12 or 24 VDC

Horizontal adjustability

Non-handed

Internally mounted solenoid

Accommodates up to 3/4" Pullman latch

Five year limited warranty

Frame application Metal, Wood

Optional Features

LBM - Latchbolt monitor

LBSM - Latchbolt strike monitor

Model: 9500 630

Specifications

UL 10C fire-rated, 3 hour (fail secure) CAN4-S104 (ULC-S104) fire door conformant WHI fire door listed UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 (6th Edition) Listed ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373) NFPA-252 fire door conformant ASTM-E152 fire door conformant California Fire Marshall listed NFPA 80-07 compliant RoHS compliant Patent #6,390,520 Patent pending

Electrical

.45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty PoE friendly
