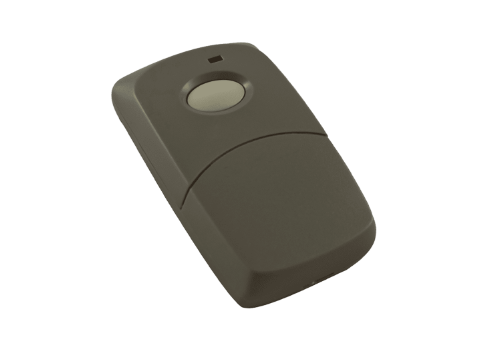

BEA 10T300HH 300 MHz analog handheld transmitter, 1 button with case and clip

**BEA 10T300HH 300 MHz analog handheld transmitter, 1 button with case and clip

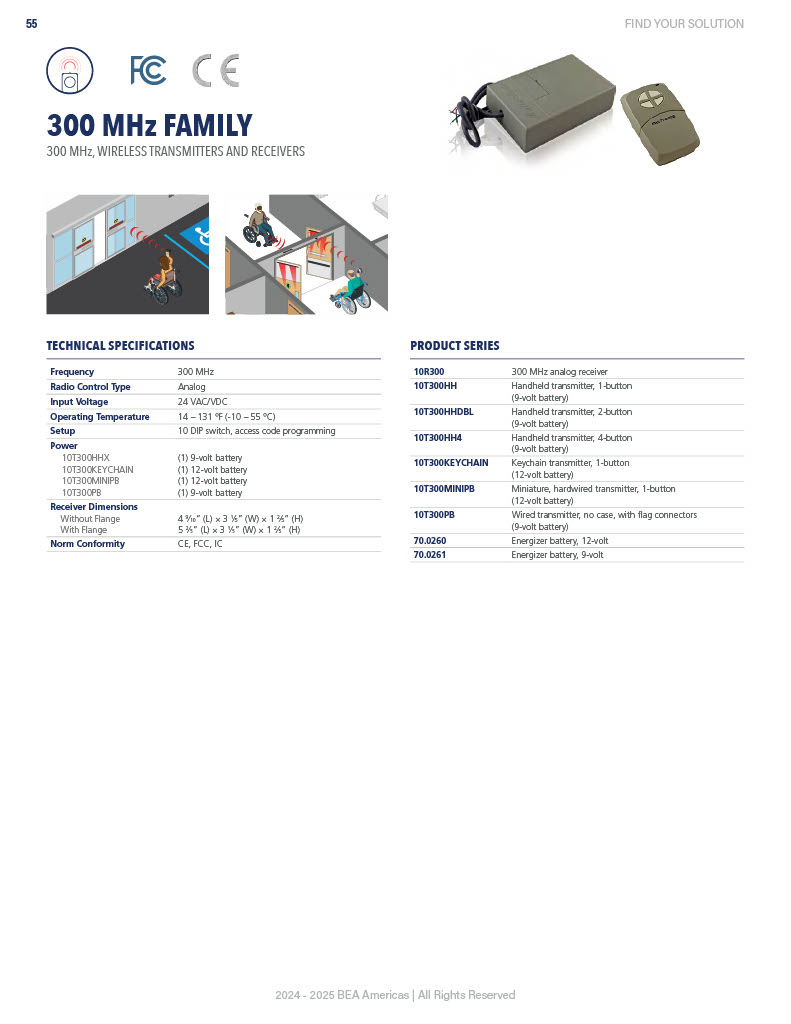

** 300 MHZ WIRELESS TRANSMITTERS AND RECEIVERS

• Offers over 1,000 unique codes using DIP switches

• Flag connectors plug directly into BEA activation push plates

• 10 position access code DIP switch set up

• Receiver Power: 12 - 24 VAC / VDC

TECHNICAL SPECIFICATIONS:

Frequency:300 MHz.

Radio Control Type:Analog.

Input Voltage:24 VAC / VDC.

Operating Temperature:14 - 131 F (-10 - 55 C).

Setup:10 dip switch access code programming.

Power:   Hardwired: 1 9-volt or 12-volt battery.   Wireless: 1 9-volt or 12-volt battery.

Receiver Dimensions:  Without Flange: 4 9⁄10" (L) x 3 1⁄5" (W) x 1 2⁄5" (H).  With Flange: 5 2⁄5" (L) x 3 1⁄5" (W) x 1 2⁄5" (H).

Norm Conformity:CE, FCC, IC.

BEA 10T300HH, BEA10T300HH, 10T300HH BEA, 10T300HHBEA,10TD300HHTR, BEA Retrofit Transmitter, Retrofit Transmitter
