BEA 10TD900TR 900 MHz Retrofit Transmitter, 12/24 VAC

BEA 10TD900TR 900 MHz Retrofit Transmitter, 12/24 VAC

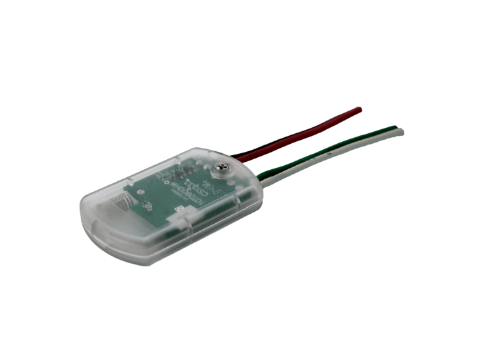

Compact 900 MHz transmitter for optimal installation conveniencebr /- Multi-color LEDs on receiver provides installer with visual notification of signal strength and activation statusbr /- Frequency hopping allows consistent transmission in areas with other 900 MHz devicesbr /- A compact battery-powered hardwired transmitter is ideal for push plate applicationsbr /- 1 2 3 and 4 button hand-held transmitters provide flexibility where multiple receivers are usedbr /br /Technical Specificationsbr /- Frequency 908 – 918 MHz (frequency hopping)br /- Emitted Radio Power −25 dBm (TX)br /- Power Consumption 22 mAbr /- Supply Voltage 12 – 24 VAC / VDCbr /- Contact Rating 1.0 A at 30 VDC 0.5 A at 125 VAC 0.3 A at 60 VDCbr /- Temperature Range 14 °F – 131 °F (−10 °C – 55 °C)br /- Programmable Units Per Receiver 75br /- LEDs Red Blue Tri-color    - Performs up to 500 ft line of sight.

• Works through Low-E glass.

• Up to four separate wireless receivers can be activated by a single transmitter.

• Built-in signal strength on receiver.

• Built-in low battery transmitter indicator.

• A maximum of 75 transmitters can be programmed to one receiver.

• Transmits a unique rolling code each time the switch is closed.

• NEMA 4 rated handheld transmitters available.

• Receiver Power: 12 - 24 VAC / VDC.

• Transmitter Power: Flag Connector: 2 AAA Batteries, Handhelds: One 3 V Battery.

• Convenient belt clip accessory available for the industrial handheld  transmitter series.
