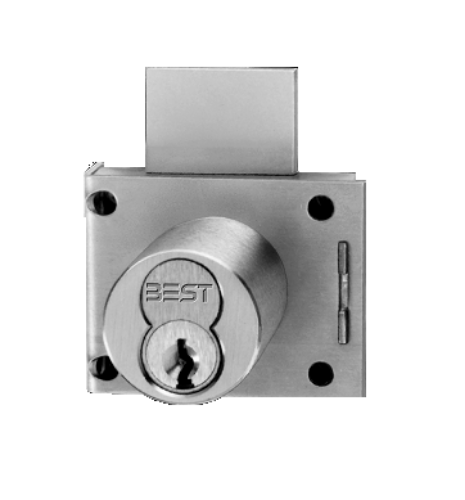

BEST 3L7RD2-626, L Series Coin Box Cabinet Lock, 7-Pin Housing, Rim Mounting Type, Dead-Locking, Vertical, Satin Chrome

3L7RD2-626, L Series Coin Box Cabinet Lock, 7-Pin Housing, Rim Mounting Type, Dead-Locking, Vertical, Satin Chrome

**

Specifications: * *Material- Bolt is stainless steel, springs are phosphor bronze, all other parts are brass. Backset- 7/8" Bolt- 1 1/8" x 3/16" - 3/4" throw Case- Height 1 21/32", width 2 1/8", thickness 21/32", hole spacing 1 39/64" x 1 1/4" Cylinder diameter- 1 1/8" Cylinder length- 7-pin tumbler, 1 13/64" Keeper plate- None supplied.
