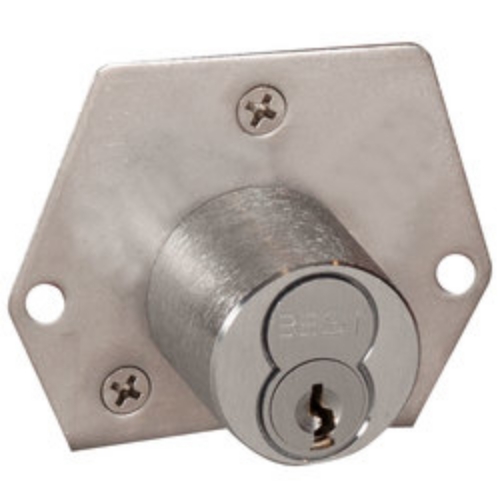

BEST 5L7RL5-626/606, L Series Standard Cabinet Lock, 7-Pin Housing, Rim Mounting Type, Latchbolt, Inverted

BEST 3L7RL5-626/606, L Series Coin Standard Cabinet Lock, 7-Pin Housing, Rim Mounting Type, Latchbolt, Inverted

**

Specifications

Latchbolt function - Retracted by key to unlock. Key may be withdrawn only in locked position

Deadbolt function - Locked and unlocked by key. Must be locked by key after door is closed. Key may be withdrawn in locked position and unlocked position

Backset - 7⁄8"

Body thickness - 1⁄2"

Case - Length 2 1⁄8", width 2 19⁄32", thickness 21⁄32", hole spacing 2 3⁄16"

Cylinder diameter - 1 1⁄8"

Cylinder length - 1 1⁄16"

Deadbolt - 3⁄4" x 25⁄64" - 1⁄2" throw

Door thickness - 5⁄8" minimum for rim type, 21⁄32" minimum for mortise type.

Face - 1 7⁄8" x 21⁄32"

Latchbolt - 3⁄4" x 25⁄64" " 9⁄32" throw

Material - Nickel plated zinc case and bolts, stainless steel cover, phosphor bronze spring.

Strike plate - 3⁄64" x 11⁄16" x 1 7⁄8", hole spacing 1 7⁄16", 1 1⁄4" wide lip.

T-Option - Key is removeable only in locked position. (Deadbolt Only)
