Cal Royal 8800 - A Grade 1 Concealed Overhead Door Closer - 90 Degree - Hold-Open - "A" Type Arm

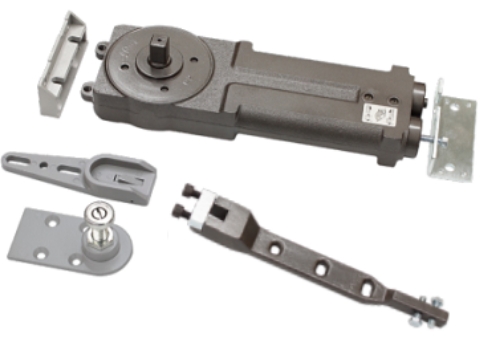

Cal Royal 8800 - A Grade 1, Concealed Overhead Door Closer -90 Degree Back Stop with Hold-Open -Center Hung Doors - "A" Type Arm

Spindle7/8"

Adjustable Dual Purpose Bottom Pivot Set

"A"Type Adjustable End Loading Top Arm Assembly, 1" Depth Top Rail

Dore Size:From 36" to 48" x 96"

ANSI A156.4 Grade 1: UL Listed

Cal-Royal's finest concealed overhead door closer series meeting the highest industry standards Grade 1.

UL Listed for fixed size door closers. ( Grade 1 ) UL Listed 10c for adjustable door closers. ( Grade 1 )

Center Hung Door Application:Double or Single Acting ( applied door stop renders unit Single Acting )

Power Size:Adjustable 1 - 4 ADA 5 lbs ( Interior ) ADA 8.5 lbs ( Exterior )

Meets both 5 and 8.5 lbs opening force for ADA

Replacement for International, Calibre, and CR Laurence

Dual Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.

Universal application. Non-handed for left or right door application.

Adjustable dual purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted ( Side or End Loading ) center pivoted installation.

Installs in an aluminum storefront header or transom as small as 1-3/4" x 4".

Positive centering for alignment and to hold door closed against normal wind or draft conditions

Model:Cal Royal 8800 -A,Cal Royal 8800 -A 90 Degree HO,Cal Royal 8800.
