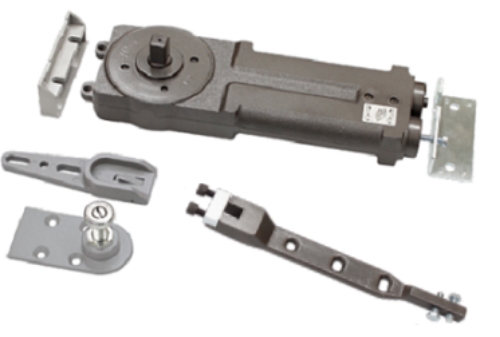

Cal Royal 8860 - PT Grade 1 Concealed Overhead Door Closer - 90 Degree - Hold-Open - "PT" Type Arm

Cal Royal 8860 - PT Grade 1 Concealed Overhead Door Closer - 90 Degree Back Stop with Hold-Open - Center Hung Doors - "PT" Type Arm

Spindle:1/2"

Adjustable Dual Purpose Bottom Pivot Set

"PT"Type Adjustable End Loading Top Arm Assembly, 7/8" Depth Top Rail

Dore Size:31" to 41" x 96"

Power Size:Medium

ANSI A156.4 Grade 1: UL Listed

Cal-Royal's finest concealed overhead door closer series meeting the highest industry standards Grade 1.

UL Listed for fixed size door closers. ( Grade 1 ) UL Listed 10c for adjustable door closers. ( Grade 1 )

Center Hung Door Application:Double or Single Acting ( applied door stop renders unit Single Acting )

Meets both 5 and 8.5 lbs opening force for ADA

Replacement for International, Calibre, and CR Laurence

Dual Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.

Universal application. Non-handed for left or right door application.

Adjustable dual purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted ( Side or End Loading ) center pivoted installation.

Installs in an aluminum storefront header or transom as small as 1-3/4" x 4".

Positive centering for alignment and to hold door closed against normal wind or draft conditions

Model:Cal Royal 8860 -PT,Cal Royal 8860 -PT 90 Degree HO,Cal Royal 8860PT.
