Cal-Royal ADB-704 Automatic Door Bottom, Mortised With Neoprene Seal, For Wood Doors

Cal-Royal ADB-704 Automatic Door Bottom, Mortised With Neoprene Seal, For Wood Doors

Product Details

Cal-Royal ADB-704 Automatic Door Bottom, Heavy Duty*MortisedWith Neoprene Seal,For Wood Doors*

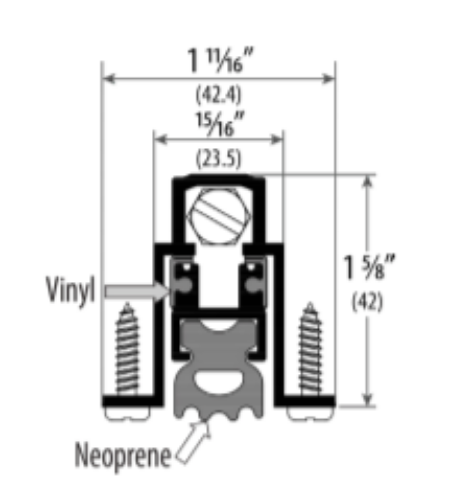

Width:15/16" (23.5mm)Height:1 5/8" (42mm)Max.Drop: 7/8" (22.2mm)

Automatic Door Bottoms are made from Extruded Aluminum combined with Neoprene or Vinyl seals.

It provides an efficient seal that blocks out air, smoke, sound, and fire. Available in Surface Mounted, Semi-Mortised and Mortised Applications.

Non-Handed, Reversible for Left or Right Hand Installation.

Low closing force; Slotted holes for adjustment.

Maximum cut should not be closer to 1 1/2" to the set screw.

Comes Standard with #6 x 3/4" PPHSDS

Model:Cal-Royal, ADB-704, ADB-704AN, ADB-704AN36, ADB-704AN48, ADB-704DN, ADB-704DN48, ADB-703DV36

Cal-Royal ADB-704 Automatic Door Bottom, Mortised With Neoprene Seal, For Wood Doors

Name: Cal-Royal ADB-704 Automatic Door Bottom, Mortised With Neoprene Seal, For Wood Doors
SKU: ADB-704
Price: 88.47 USD
Availability: InStock

SKU: ADB-704

In Stock

Chat

$88.47

About this item

Cal-Royal ADB-704 Automatic Door Bottom, Heavy Duty Mortised With Neoprene Seal, For Wood Doors

Width: 15/16" (23.5mm) Height: 1 5/8" (42mm) Max.Drop: 7/8" (22.2mm)

Automatic Door Bottoms are made from Extruded Aluminum combined with
Neoprene or Vinyl seals.

It provides an efficient seal that blocks out air, smoke, sound, and fire.

Available in Surface Mounted, Semi-Mortised and Mortised Applications.

Non-Handed, Reversible for Left or Right Hand Installation.

Low closing force; Slotted holes for adjustment.

Maximum cut should not be closer to 1 1/2" to the set screw.

Comes Standard with #6 x 3/4" PPHSDS

Model: Cal-Royal, ADB-704, ADB-704AN, ADB-704AN36, ADB-704AN48, ADB-704DN, ADB-704DN48, ADB-703DV36
