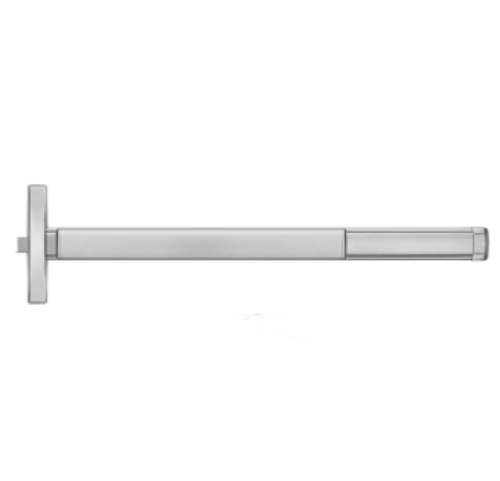

PHI Precision ELR2401 / 2402 / 2403 / 2405 / 2408 / 2414 / 2415 Apex Rim Narrow Stile Exit Device With Electric Latch Retraction

PHI Precision ELR2401 / 2402 / 2403 / 2405 / 2408 / 2414 / 2415 Apex Rim Narrow Stile Exit Device With Electric Latch Retraction

Description and Features:

The ELR option provides remote Latch Retraction of exit devices. Continuous duty solenoids retract the Latchbolt(s) for momentary unlatching or continuously for dogging. The ELR feature can be interfaced with automatic door operators, card readers, push buttons, toggle/key switches, and fire alarm systems.

- ELR option REQUIRES ELR150 Series Power Supply.See Below

- UL Listed for Panic and Fire for Class II Circuitry

- ELR can be used in combination with all Apex options including Hex Key or Cylinder Dogging.

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36
