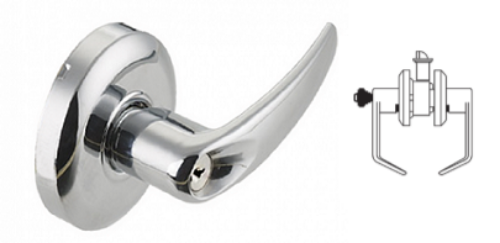

Cal-Royal AG03 Classroom Lock

Cal-Royal AG03 Classroom Lock  -*ANSI F84*

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways - 6 pin solid brass "C" keyway standard.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

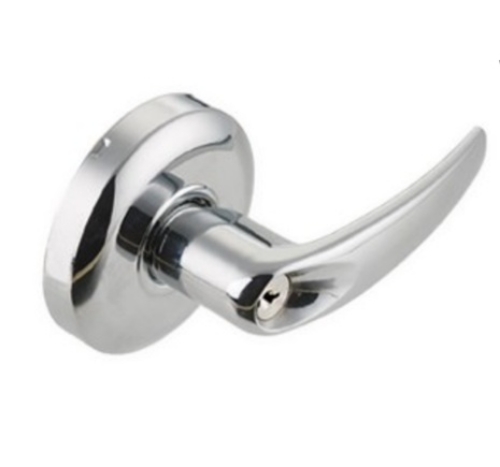

Model:Cal-Royal AG03,Cal-Royal AG03US26D,Cal-Royal AG03US1,Cal-Royal AG03US3,Cal-Royal AG03US4,Cal-Royal AG03US10,Cal-Royal AG03US10BE,Cal-Royal AG03US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
