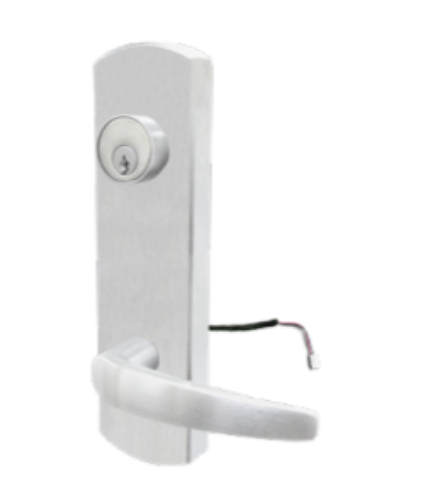

Cal-Royal ATESC77 Electrified Exit Device Lever Trim

Cal-Royal ATESC77 Electrified Exit Device Lever Trim

The control of stairwells in high-rise buildings is a common application for this trim, where electric pullback of the exit device's latch bolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require afail-safecondition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expensive power supply to provide the surge current.

Features Continuous duty solenoids used to insure trouble-free operation Internally mounted solenoid to ease installation (no special door prep required) No hassle 3-Year Warranty

Options Available Fail Safe (electrically locked) or Fail Secure (Electrically Unlocked) Voltage options 12V or 24V (AC/DC) Request to Enter Switch (REE) available CRU2 Current Reduction Unit to improve solenoid life incontinuously onapplications

Specifications Solenoid....................Continuous Duty 24VDC Operating Voltage....12 or 24VAC/DC + OR 10% (must specify 12 or 24 volts when ordering) Coil Resistance........12V=49Ω / 24V=159Ω

Rigid Entrance, key locks or unlocks escutcheon trim: ANSI-function (63) Operates as classroom function

Rigid, non clutch mechanism. Double heavy duty spring support to prevent sagging and enhance operation. Grade 1, thru-bolted design. Non-handed design. Easily field reversible. Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4" width X 10-1/4" length. Lever length: 4-3/4". Fits and covers 2-1/8" 161 cutout

Keyway: 6 pin solid brass C keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full size format Interchangeable Core.

Cal-Royal FS12ATESC77 - Fail-Safe (FS) 12V AC/DC

Cal-Royal FS24ATESC77 - Fail-Safe (FS) 24V AC/DC

Cal-Royal FSE12ATESC77 - Fail-Secure (FSE) 12V AC/DC

Cal-Royal FSE24ATESC77 - Fail-Secure (FSE) 24V AC/DC
