Cal-Royal BTSR-108 Door Bottom Sweep

Cal-Royal BTSR-108 Door Bottom Sweep With Rain Drip Made Of Extruded Aluminum Retainer And Vinyl Insert

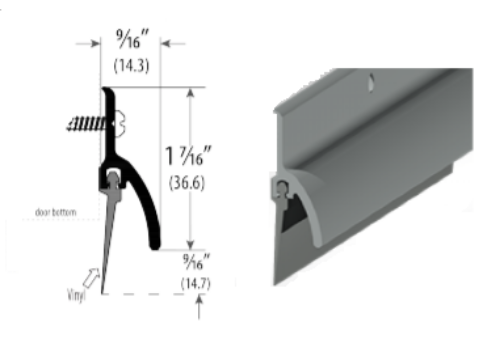

Width:  9 /16" (14.3mm)Profile*Height:7 /16" (36.6mm)Total Height:*2" (51.3mm)

Comes Standard with: #6 x 5/8" PPHSMS

Model:Cal-Royal, BTSR-108, BTSR-108AV-36, BTSR-108AVAV-84, BW-303AV-96, BW-303AV-48, BW-303A, BW-303DV, BW-303DV-36, BW-303DV-48, AV - Mill Finish Aluminum with Vinyl Insert, DV - Dark Bronze Anodized Aluminum With Vinyl Insert

Door Bottom Sweeps are used to seal the gap at the bottom of the door to prevent infiltration of sound, light, drafts, insects, moisture, smoke or fire.

Surface mounted to the face of the door. They are commonly used on the exterior of outswing doors.

Made of Extruded Aluminum Retainer with Vinyl or Neoprene Insert.

Used on either Wood or Hollow Metal doors.

Punched with slotted holes for adjustment.

Also available with a rain drip design (prefix BTSR), which deflects water
