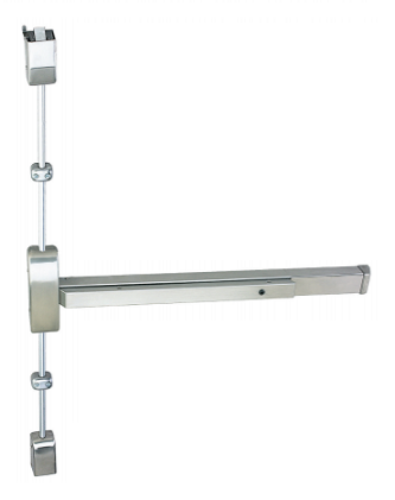

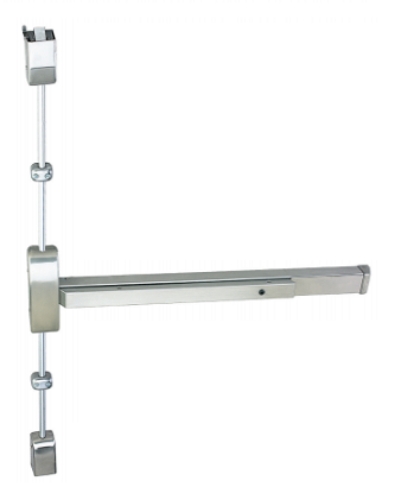

Cal-Royal A9860V / AF9860V Surface Vertical Rod Push Bar Exit Panic Device

Cal-Royal A9860V / AF9860V Vertical Rod Push Bar Panic And Fire Exit Devices

Retrofits Sargent 8800 Series using 9800 Escutcheon Trim

Door Thickness:1-3/4" thick standard, optional 2-1/4" thick.

Stile:3-3/4" minimum stile width required for single door application. 3-1/2" minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available.

Chassis - Nonferrous ally (Panic Grade), steel (Fire Grade)

Cover - Brass, bronze or stainless steel. Covers stock hollow metal doors with 161 cutout.

Mounting - Furnished with wood and machine screws. Thru bolts are standard packaging on fire rated devices. Thru bolts are included and standard packaging on fire rated devices.

End Cap - Brass, Bronze or Stainless Steel Construction.

Hand - Easily field reversible.

Latch Bolt - Stainless steel.   Spring - Stainless steel.

ANSI Standard - A156.3, Grade 1.

Rail Assembly - Heavy gauge brass, bronze or stainless steel.

Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab

UL and ULC Listed - 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

Model: Cal Royal, Cal-Royal, 9860V3684, F9860V3684, 9880V4896, F9880V4896, 9890V3696, F9890V3696, 9850V36120, 9840V48120, US32D, US3, US4, US10, US10B, US32, L1 BLACK,

All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes

All springs shall be of stainless steel throughout

All exit devices shall be of chassis mounted unit construction

All exit devices shall be ANSI A156.3, Grade 1

All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width

(ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
