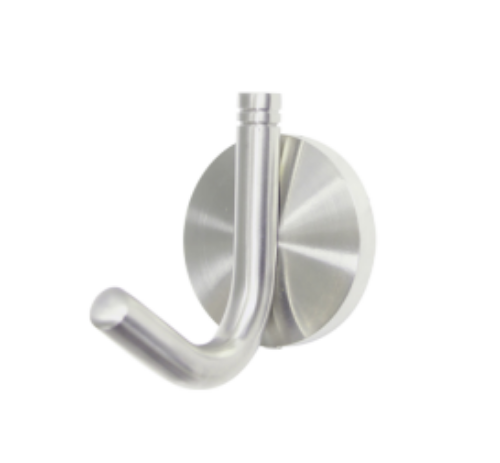

Cal-Royal CH30 Short Round Coat Hook Single Hanger

The Cal-Royal CH30 is a commercial-grade single-prong round coat hook in solid stainless steel, designed for washroom partitions, restroom stalls, hospital exam rooms, behind-door installations, and any tight-clearance application where a deeper projection would interfere with door swing or partition hardware. The 3-1/16" short projection is intentionally compact -long enough to hold a coat, scrub jacket, robe, or apron, short enough to stay clear of stall doors and partition swings. Round 2-1/4" diameter base plate gives the hook a clean circular footprint that coordinates with other round-base washroom accessories from Bobrick, ASI, and Bradley. Concealed mounting hides the fasteners behind the base plate after installation for a finished commercial appearance and a tamper-resistant install. Stainless steel construction handles bleach cleaning, repeated wipe-downs, high-humidity environments, and heavy daily cycling without rusting, pitting, or staining. Conforms to ANSI/BHMA A156.16 standards L03121, L03122, and L03123, making the CH30 specifiable on any architectural drawing calling for those classifications. Individually poly-bagged for clean job-site delivery and easy installation tracking. Same-day shipping, free shipping on orders of $300 or more. SKU CH30.

About the Cal-Royal CH30 and ANSI A156.16 Compliance

Cal-Royal Products is a U.S. commercial hardware manufacturer (Los Angeles, in business since 1986), supplying value-engineered architectural hardware that meets the same ANSI/BHMA standards as Ives, Trimco, Rockwood, and Bobrick at a meaningfully lower price point. ANSI/BHMA A156.16 is the "Auxiliary Hardware" standard covering coat hooks, robe hooks, towel bars, mop holders, and washroom accessories. Within that standard, the L03121/L03122/L03123 classifications cover single-prong coat hooks: L03121 is single hook surface mounted with exposed fastening, L03122 is single hook surface mounted with concealed fastening, and L03123 is single hook with backplate. The CH30 conforms to all three classifications, which means it can be specified in any drawing calling for any of those three subsections without re-spec'ing. Spec writers and facility managers should reference the ANSI A156.16 L03122 designation specifically when matching this product to drawings calling for concealed-mount washroom coat hooks. For the broader Cal-Royal hooks lineup see Coat and Hat Hooks within Hooks and Brackets under Builders Hardware.

CH30 Round Coat Hook Specifications

• Function: single-prong round coat hook for surface mounting on washroom partitions, walls, stall doors, and behind-door installations

• Material: solid stainless steel construction (corrosion-resistant, bleach-cleanable, dishwasher-safe finish)

• Mounting: concealed mounting (fasteners hidden behind base plate after install)

• Projection: 3-1/16" (compact short projection for tight clearance applications)

• Overall height: 2-15/16"

• Base plate: 2-1/4" diameter (round, coordinates with round-base washroom accessories)

• Material thickness: 1/2" diameter solid prong

• Packaging: individually poly-bagged for clean job-site delivery

• ANSI/BHMA standard: A156.16 L03121, L03122, L03123 compliant (Auxiliary Hardware, Single Hook category)

• Model variants: CH30, CH230US32D (Satin Stainless Steel BHMA 630 finish)

• Brand context: Cal-Royal Products, U.S. commercial hardware manufacturer (Los Angeles, established 1986)

When to Specify the CH30 Round Coat Hook

The 3-1/16" short projection makes the CH30 the right call when door swing, partition clearance, or behind-the-door installation rules out a deeper hook. Common applications:

• Restroom partition stalls (the short projection clears the partition door without hitting the wall behind)

• Hospital exam rooms and patient rooms (stainless cleans easily with bleach wipes for infection control)

• Behavioral health and psychiatric facility coat areas (stainless single-prong design has no exposed fasteners or sharp corners for ligature-resistance protocols when paired with appropriate breakaway mounting)

• Cafeteria, gymnasium, and auditorium coat walls in schools (commercial-grade stainless handles institutional cycling)

• Behind-door installations on commercial bathroom doors, office doors, and dormitory room doors (the short projection prevents hook from snagging clothing during door operation)

• Locker room and changing room coat areas where hooks line up at close spacing

• Restaurant and hospitality back-of-house staff coat areas (apron hooks, jacket hooks, hat hooks)

If the application needs a deeper projection (4 to 5") for layered garments and heavy winter coats, look at the Ives 575 Coat & Hat Hook, Ives 574 Coat & Hat Hook, or Trimco 3070-1 Coat & Hat Hook. For a budget-tier aluminum hook in similar projection range, see the Ives 405 Aluminum Coat & Hat Hook. For the smallest projection in the catalog (under 2"), see the Ives 571 Coat & Hat Hook. For a slightly deeper projection in stainless, see the Ives 572 Coat & Hat Hook.
