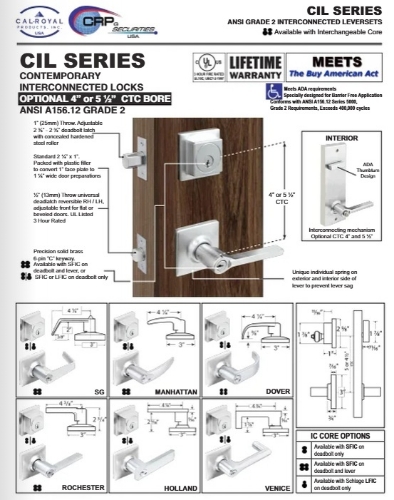

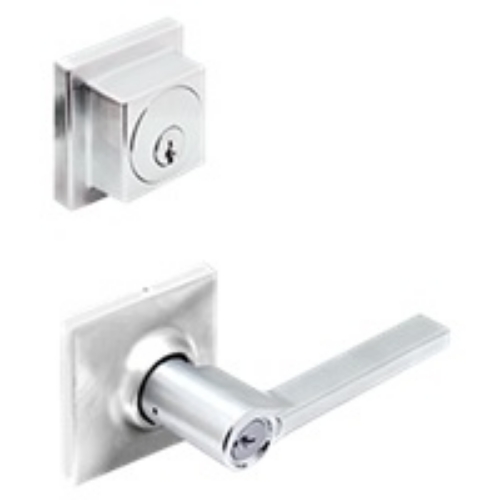

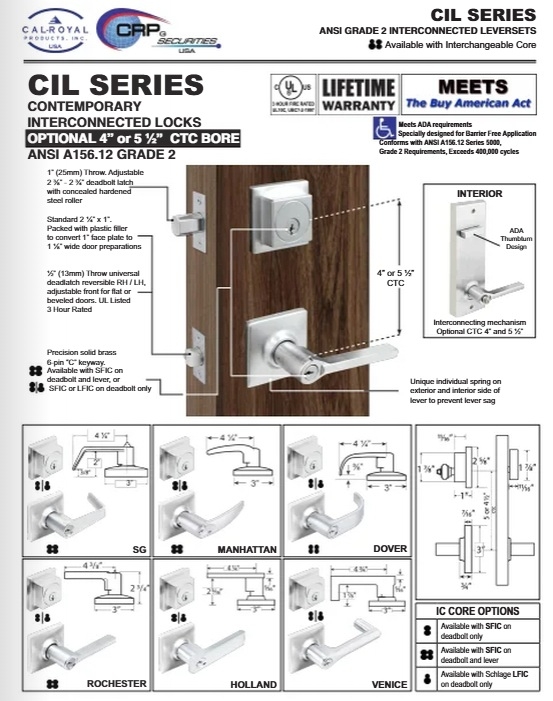

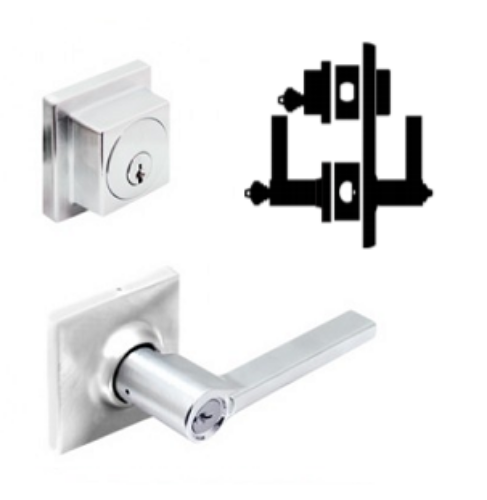

Cal-Royal CILROC00 US26D Double Locking, Interconnected Entrance Lever Lock, Satin Chrome

Cal-Royal CILROC00 US26D Double Locking, Interconnected Entrance Lever Lock, Satin Chrome - 4" Or 5 1/2" CTC Bore

ANSI: F97

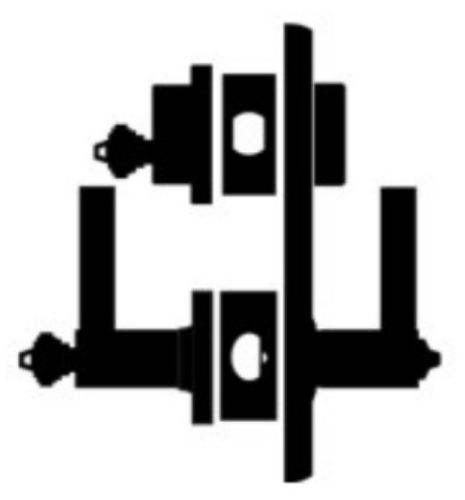

FUNCTIONS: Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Dead latch retracted by key in outer when locked by pushing turn button in inner lever. Outer lever may be fixed in locked position by rotating turn button. Turning inside lever retracts deadbolt and latch bolt simultaneously for immediate exit.

DOOR RANGE: 1 3/8" - 1 3/4" door thickness.

ANSI STANDARDS: Meet ANSI A156.12 Series 5000 Grade 2 Requirements.

STRIKES: Standard "T" strike furnished with lockset. 2 3/4" x 1 1/8" square strike with deadbolt.

ESCUTCHEON: : 9 9/16" x 3 1/8" brass plated. Packed with interior escutcheon. Optional external escutcheon available.

DEADBOLT: 1" Throw. UL-Listed Adjustable 2 3/4" or 2 ⅜" Brass with hardened steel pin. Standard 2 1/4" x 1" face plate, packed with plastic filler for 1 ⅛" door preparations.

LATCH BOLT: 1/2" Throw. UL-Listed for 3 hour doors. 2 3/4" standard backset.

LATCH FACEPLATE: Standard 2 1/4" x 1" face plate, packed with 1/8" plastic filler for 1 1/8" door preparations.

HOUSING: Steel and Zinc dichromate finish for rust resistance.

GENERAL SPECIFICATIONS: Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body. High security with a double locking point using the keyed lock function.
