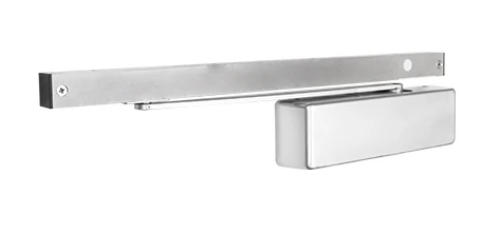

Cal-Royal CR441EHO Grade 1, Full Cover Door Closer with Electronic Hold-Open

Cal-Royal CR441EHO ANSI A156.4, Grade 1, Full Cover Door Closer , With Electronic Hold-Open

The CR441EHO is a Grade 1 heavy duty door closer with electrically controlled hold open track arm. It is designed to provide adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. It can also be interfaced to any alarm systems and has a built-in switch for integrity cycle testing. Single lever (track) arm closer is specifically designed for interior doors

Adjustable 1-6 Door Body with Electronic Hold-Open Track

Full Feature Closer

ANSI 156.4 Grade 1

UL Listed, Conforms to Standards

UL10C and UBC7-2-1997

BHMA Certified Lifetime Warranty

Electronic Hold-Open Track

Features: Heavy Duty Electronic Closer / Holder Track for CR441 Door Closers

Designed for Single Point Hold-Open for Fire and Smoke Barrier Doors

Designed to Hold Doors Open in Normal Use and Close Under Fire Conditions

Adjustable Hold-Open Force

Functions as a Full Rack and Pinion Closer when Hold-Open is Not Engaged or Current is Interrupted

Door Opening can be Adjusted on the Track Arm

Concealed or Surface Wiring

Interfaces with Alarm Systems

Mounts on Either Head Frame or Stop

Non-Handed

24V AC / DC Input for Holding Solenoid

Includes Test Switch for Integrity Cycle Test

Finishes: Aluminum - Gold -Duranodic

Model: Cal-Royal, Cal Royal,CR441EHO,CR441EHO,CR441EHO, Door Closer, AL, Aluminum, Duro, Duranodic, GO, Gold.
