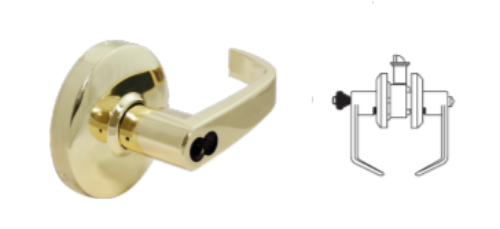

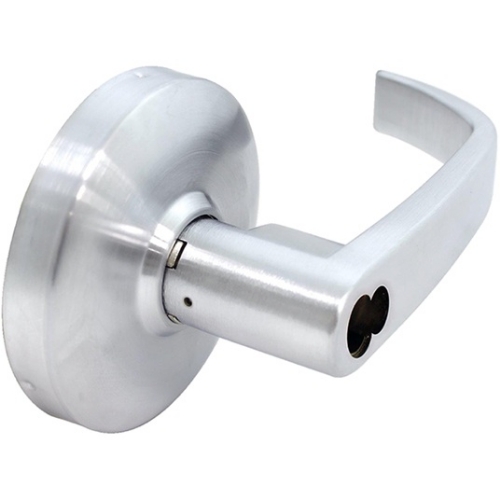

Cal-Royal SARICCSPA00 Grade 1 Entrance/Office Lock - Accepts Sargent LFIC Core

Cal-Royal SARICCSPA00 Grade 1, Entrance/Office Lock - Accepts Sargent Large-format Interchangeable Core (LFIC) (core not included)

ANSI F81

Turn/Push button locking. Pushing and turning button locks outside Lever requiring use of key until button is manually unlocked. Pushing button locks outside Lever until unlocked with key or inside lever is turned.

ANSI: A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset: UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike: ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Housing: Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore.

Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever: Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose: Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
