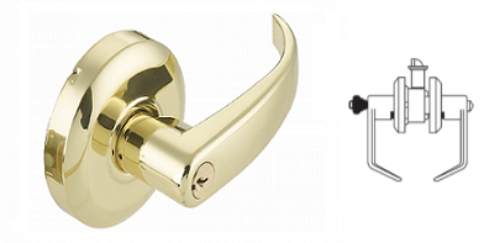

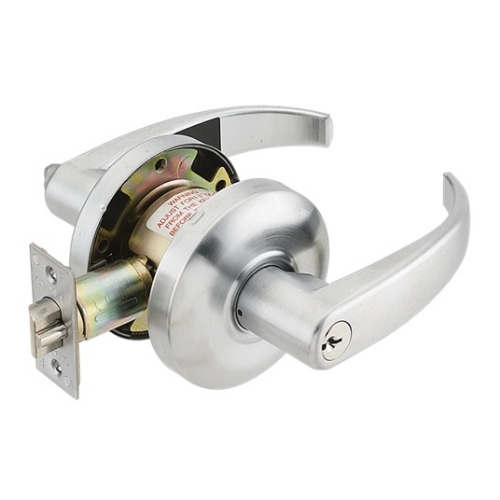

Cal-Royal CRL00 Entrance/Office Lock - With Clutch

Cal-Royal CRL00 Entrance/Office Lock - ANSI: F109

Turn/Push button locking.Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose. Keying - 6-pin "C" keyway cylinder, 2 keys per lock.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

Model:Cal-Royal CRL00,Cal-Royal CRL00US26D,Cal-Royal CRL00US1,Cal-Royal CRL00US,3Cal-Royal CRL00US4,Cal-Royal CRL00US10,Cal-Royal CRL00US10BE,Cal-Royal CRL00US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
