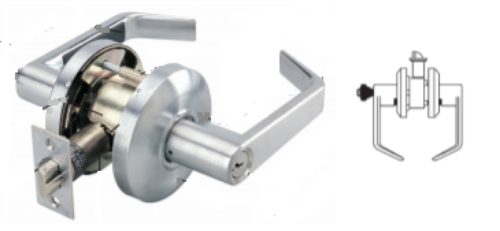

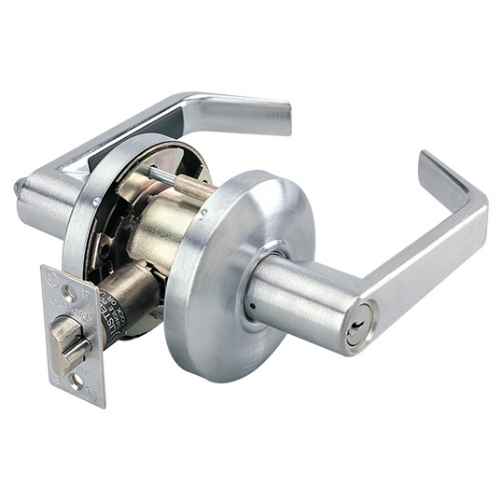

Cal-Royal CSL05 US26D Storeroom Lock, Satin Chrome - With Clutch

Cal-Royal CSL05 US26D Storeroom Lock, Satin Chrome - With Clutch

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

ANSI: Grade 2 Lock

Door Range: 1-3/8" to 1-3/4" thickness doors.

Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front: 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike: ASA strike standard, "T" and full lip strike available on request.

Latchbolt: 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Keying: 6-pin "C" keyway cylinder, 2 keys per lock.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
