Cal-Royal DSR-407 Aluminum Door Shoe

Cal-Royal DSR-407 Aluminum Door Shoe With Rain Drip And Vinyl Insert

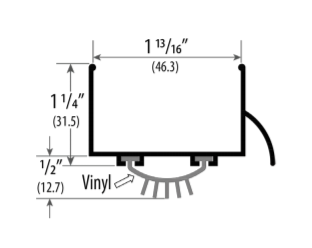

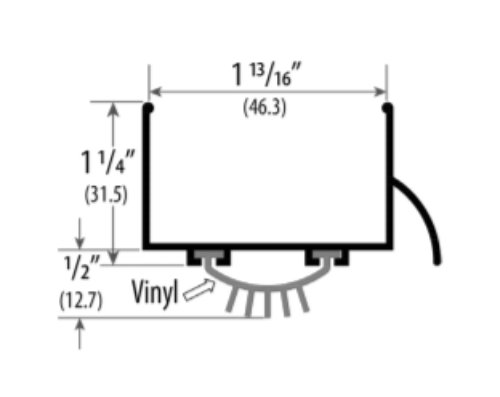

Width:1 13/16" (46.3mm)Profile Height:1 1/4" (31.5mm)Total Height with Insert:Approx. 1 3/4" (44.2mm)

Comes Standard with #6 x 5/8" PPHSMS

Model:Cal-Royal, DSR-407,  DSR-407-36,DSR-407-48, AV - Mill Finish Aluminum with Vinyl Insert DV - Dark Bronze Anodized Aluminum With Vinyl Insert

Door Shoe is applied to the underside of the door creating a barrier against dust, drafts, light, smoke, and fire without compromising the aesthetics of the door.

It is also used to provide protection for the bottom of the door.

It consists of Aluminum Channel with a flexible Vinyl Insert.

Channels are punched with slotted holes for easy adjustment.

Used on either Wood or Hollow Metal doors.

Also available with a rain drip design (prefix DSR), which deflects water from the door as well as sealing the bottom of the door
