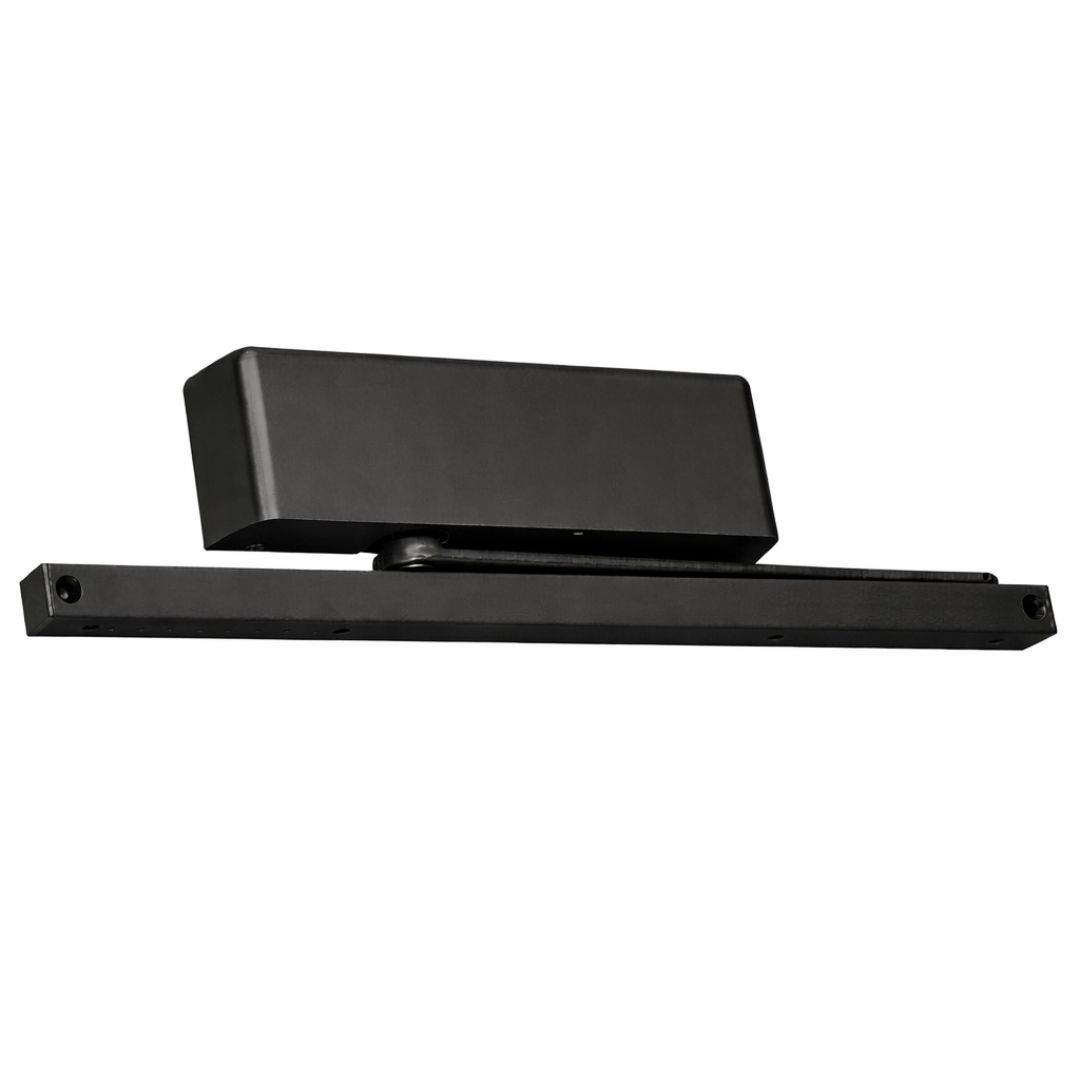

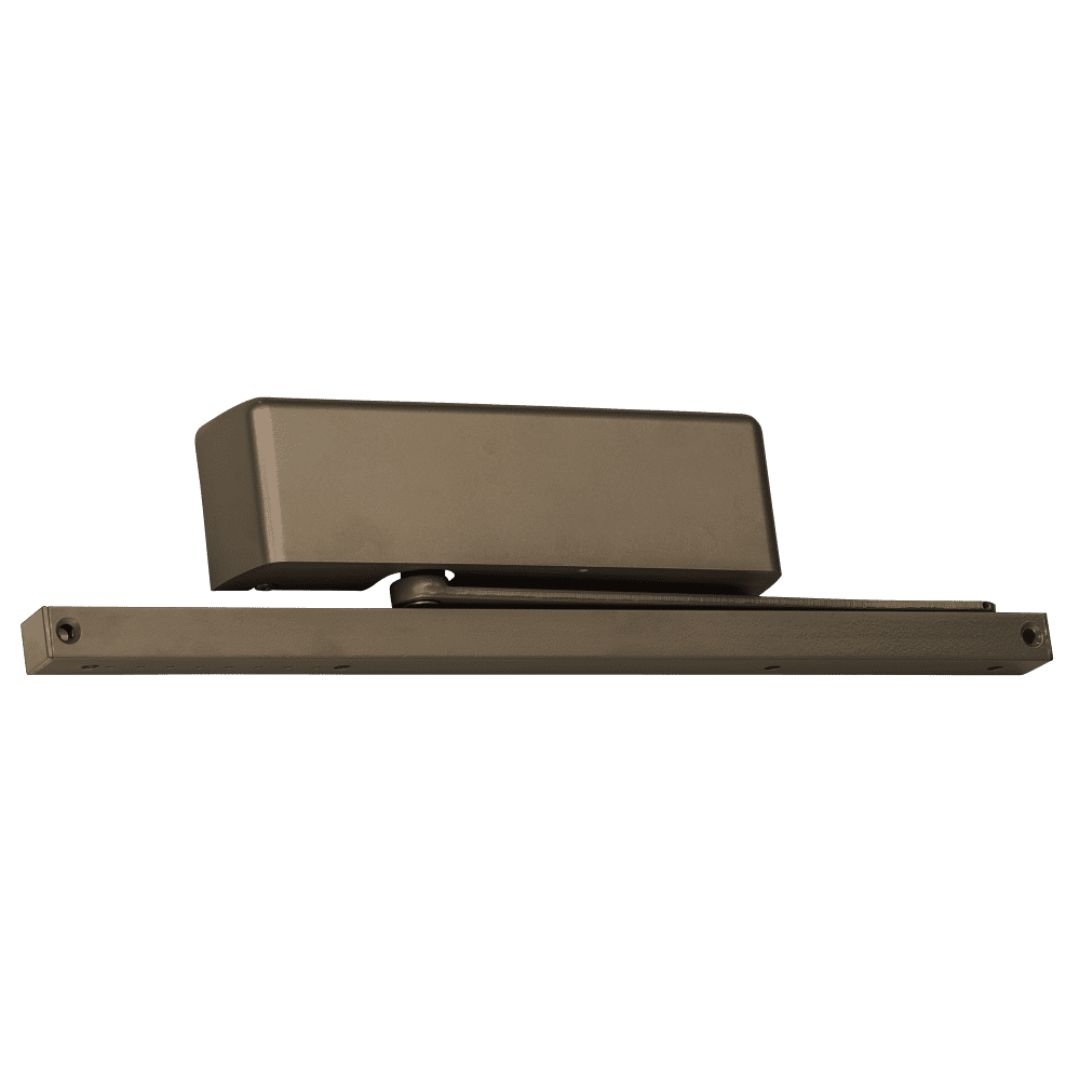

LCN 4023T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 3

LCN 4023T Heavy Duty Track Closer -Size 3

"Mounting Top Jamb (Pull Side)"

Size 3 Interior door width 34˝ (864mm) - 38˝ (965mm)

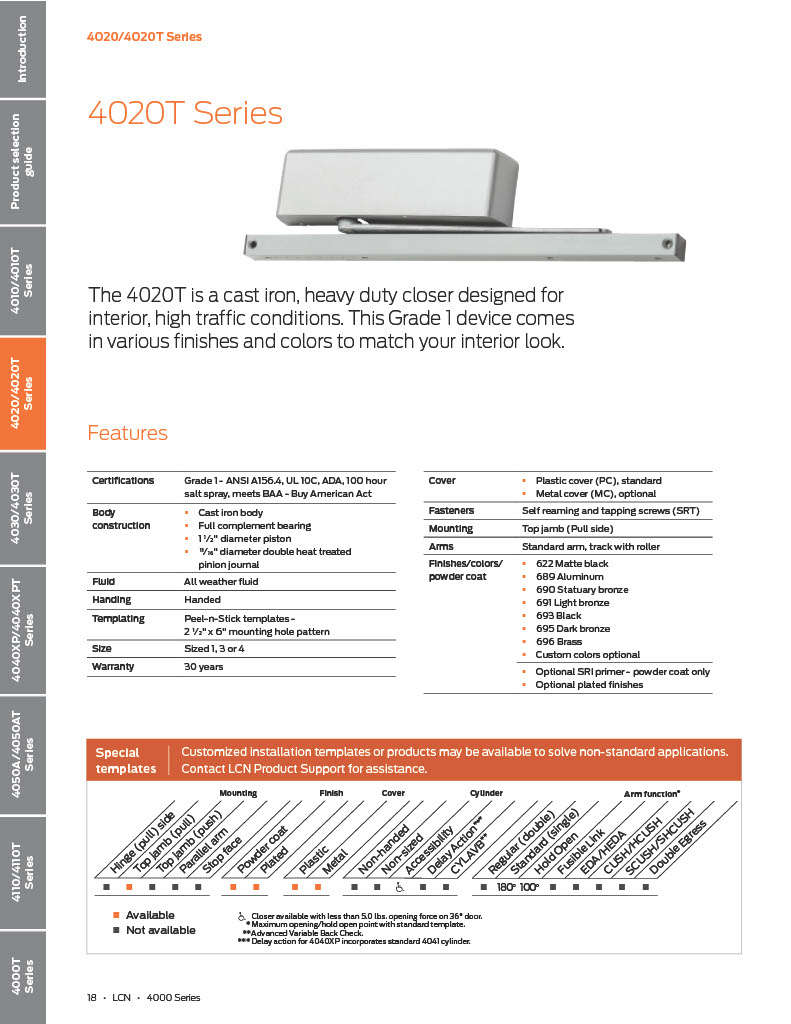

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Standard Arm and Track with Roller

Fluid:All Weather Fluid

Templating:Peel-n-Stick templates - 2-1/2˝ x 6˝ Mounting Hole Pattern

Cover:Plastic, Standard

Fasteners:Self Reaming and Tapping Screws (SRT)

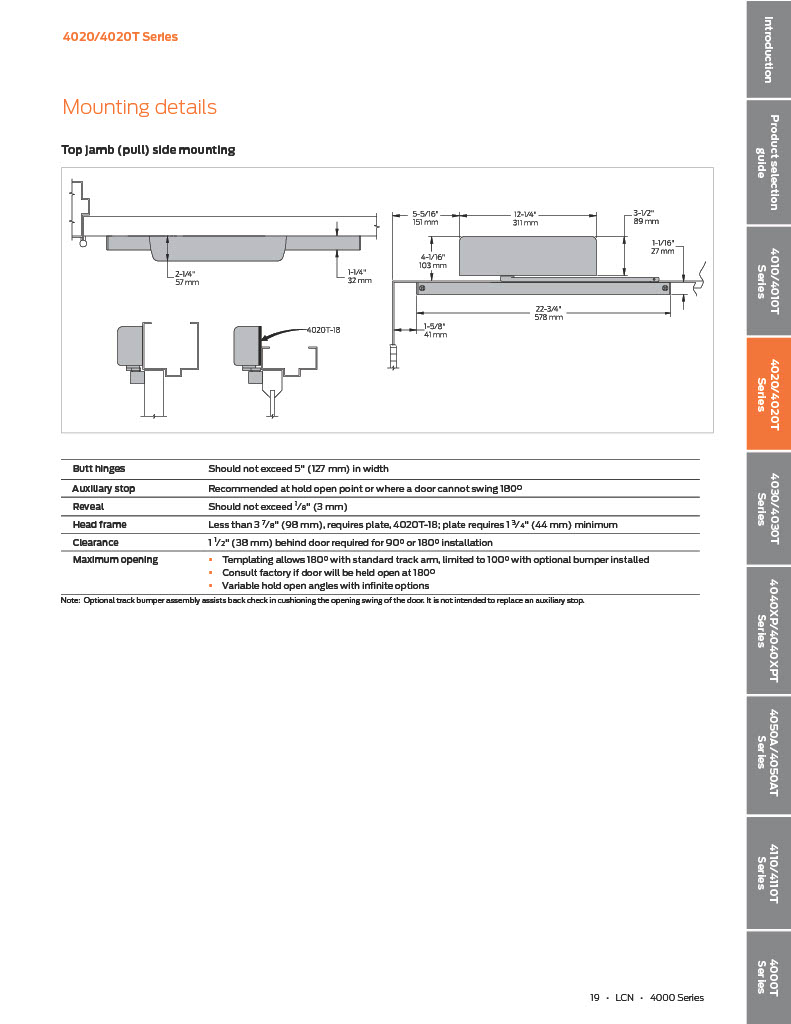

Reveal:Should not exceed 1/8˝ (3 mm)

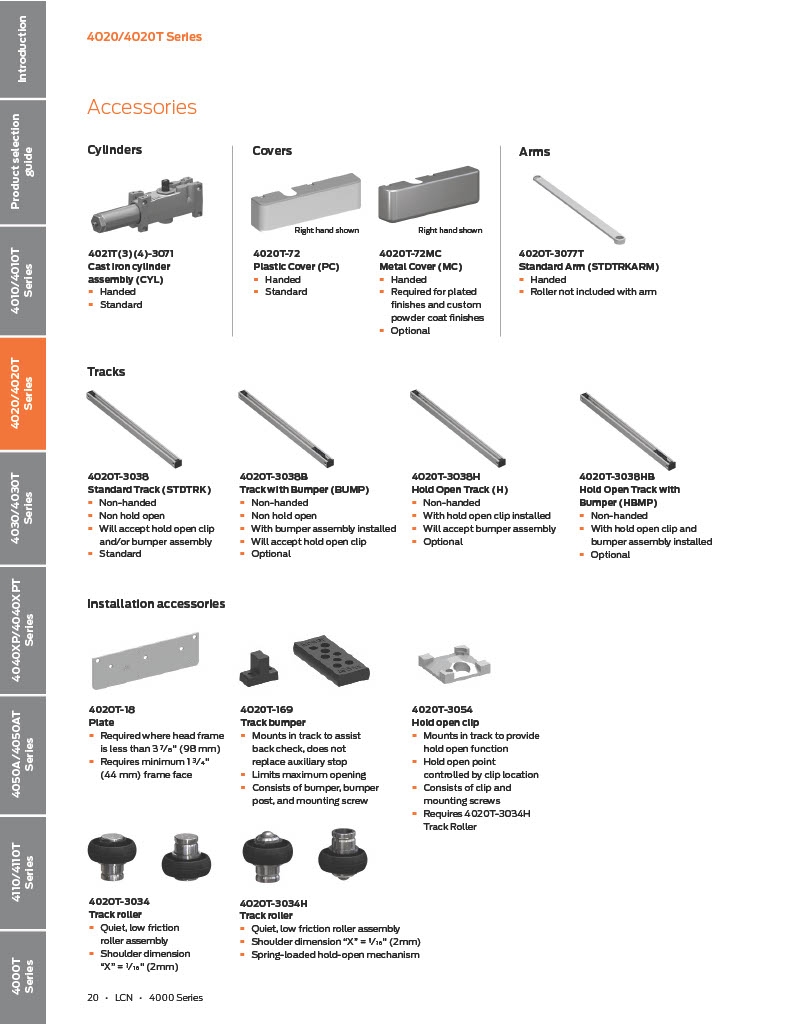

Head Frame:Less than 3-7/8˝ (98 mm), requires PLATE, 4020T-18, late requires 1-3/4˝ (44 mm) minimum

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:30 years
