Cal-Royal ESC4440 Dummy Exit Device Escutcheon Lever Trim

About this item

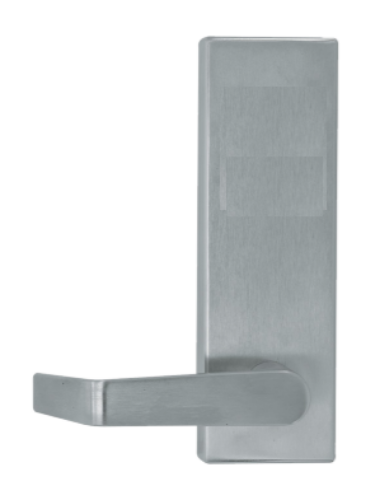

Cal-Royal ESC4440 Dummy Exit Device Escutcheon Lever Trim

Dummy Escutcheon trim ANSI Function (02

Rigid, non clutch mechanism. Thrubolted design. Non-handed design. Easily field reversible. Hardened steel heavy duty tailpiece. Standard 6-Pin Schlage "C" keyway rim cylinder included

Escutcheon dimensions: 2-3/4" width X 8-1/2" length. Lever length: 4-3/4". Fits and covers 2-1/8" 161 cutout

Keyway: 6 pin solid brassCkeyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) INTERCHANGEABLE CORE: Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) INTERCHANGEABLE CORE: Indicates function available with Schlage Full size format Interchangeable Core.

Resources

• https://www.cal-royal.com/files/4400_Accessories.pdf
