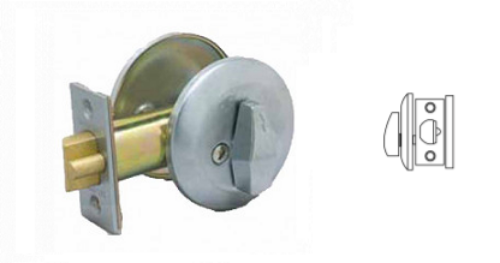

Cal-Royal GL60234 Grade 2, One Sided Latch Bolt - (2 3/4" backset)

Cal-Royal GL60234 Standard Duty Grade 2, One Sided Latch Bolt - (2 3/4" backset)

FUNCTION:Dead latch retracted by thumb turn unit. Blank plate on external trim to be used on bore holes 1 5/8" and 2 1/8" diameter. Otherwise, always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:2-3/4"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal GL60Series,GL60234, GL60234US26D, GL60234US3, GL60234US4, GL60234US5, GL60234US10, GL60234US15, GL60234US10B, GL60234US1, GL60234US26.
