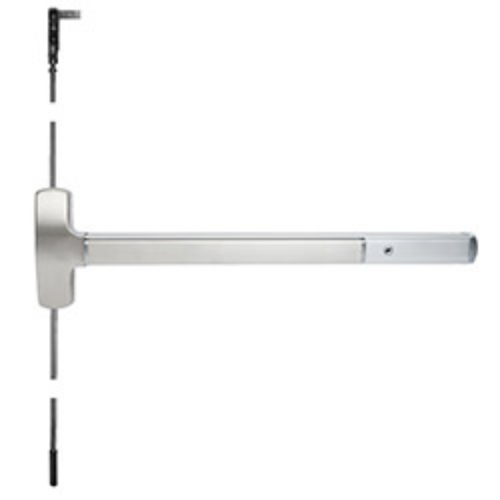

Falcon MEL25C-EO Concealed Vertical Rod Exit Device, Motorized Electric Latch Retraction

Falcon MEL25C-EO Concealed Vertical Rod Exit Device, Motorized Electric Latch Retraction

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

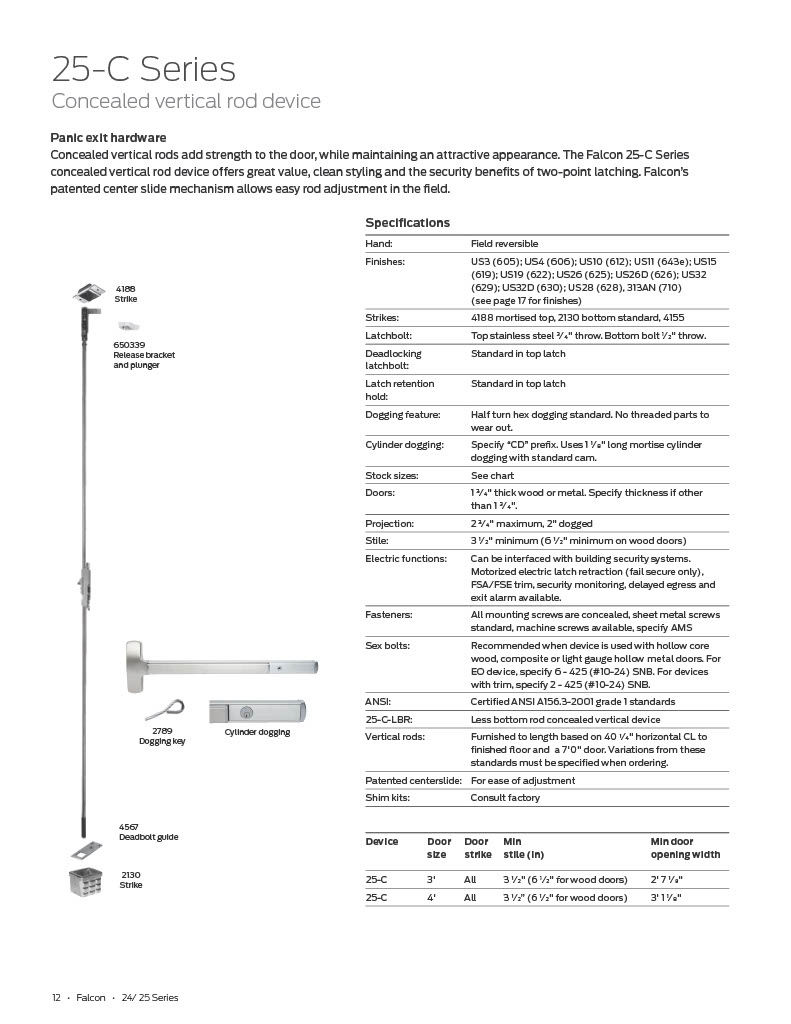

Specifications

Hand:Field reversible.

Finishes:US3 (605); US4 (606); US10 (612); US11 (643e); US15

(619); US19 (622); US26 (625); US26D (626); US32

(629); US32D (630); US28 (628), 313AN (710)

Strikes:4188 mortised top, 2130 bottom standard, 4155

Latchbolt:Top stainless steel 3⁄4" throw. Bottom bolt 1⁄2" throw.

Deadlocking latchbolt:Standard in top latch

Latch retention hold:Standard in top latch

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify 'CD' prefix. Uses 1 1⁄8" long mortise cylinder dogging with standard cam.

Stock sizes:See chart.

Doors:1 3⁄4" thick wood or metal. Specify thickness if other than 1 3⁄4".

Projection:2 3⁄4" maximum, 2" dogged. Stile: 3 1⁄2" minimum (6 1⁄2" minimum on wood doors).

Electric functions:Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.

Fasteners:All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (#10-24) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

25-C-LBR:Less bottom rod concealed vertical device.

Vertical rods:Furnished to length based on 40 1⁄4" horizontal CL to finished floor and a 7'0" door. Variations from these standards must be specified when ordering.

Patented centerslide:For ease of adjustment.

Model:Falcon MEL25C-EO, MEL25-C-EO, 25CEO, MEL25 C EO , MEL25 C EO

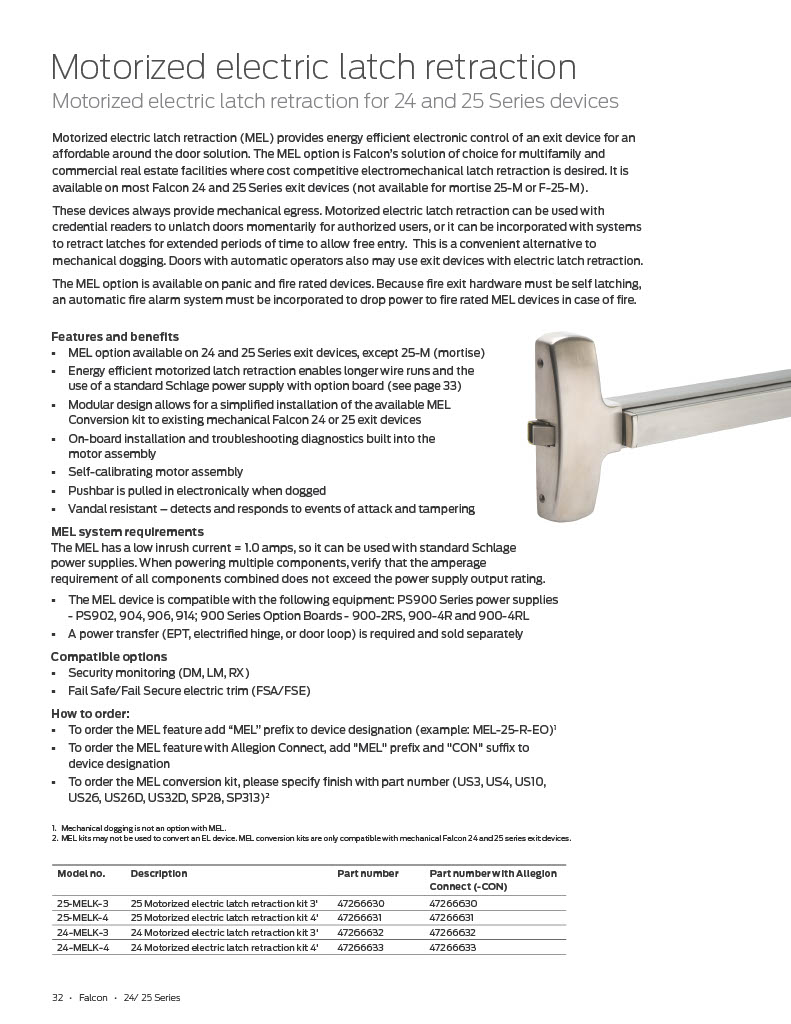

MEL Specifications compliance:

• MEL is designed for use on exit devices that are BHMA Certified to ANSI/BHMA A156.3

• Exit devices with MEL are UL and cUL Listed as "Panic Hardware" (UL 305) and as "Fire Exit Hardware" (UL 10C)

• The MEL Conversion Kit is UL Classified under "Accessories for Single-Point Locks  and Latches and Fire Exit Hardware" (UL 10C)

Electronic specifications:

MEL electrical load Voltage 24 VDC Current 1.0 A Inrush (0.5 sec) 0.14 A Holding

MEL wire run lengths Distance (one way) - Wire gauge

200' - 18 AWG

320' - 16 AWG

500' - 14 AWG

800' - 12 AWG
