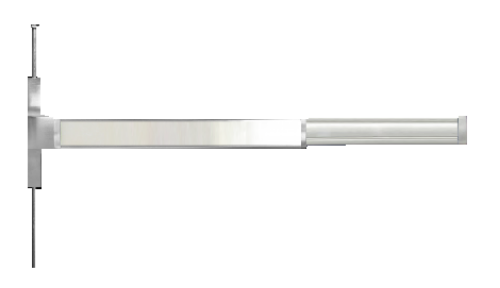

Cal-Royal GLSCVR7700 / FGLSCVR7700 Narrow Stile Concealed Vertical Rod Panic Bar Exit Device

Cal-Royal GLSCVR7700 / FGLSCVR7700 Narrow Stile ConcealedVertical Rod Type Panic And Fire Exit Devices

For Doors:Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application

Chassis:Non-ferrous Alloy (Panic Grade)

Cover:Non-ferrous plated material.

Mounting:Furnished with wood and machine screws   Hand:Handed. Specify RHR or LHR

Top and Bottom Bolts:Stainless Steel. Top and bottom bolt travel 7 /16" (11 mm) Stainless Steel. Adjustable to 1" (25 mm)

Spring:Stainless Steel throughout

ANSI Standard: A156.3, Grade 1

Rail Assembly:Heavy gauge extruded aluminum body with Stainless Steel push pad

Strike:260 Top and 265 Bottom strikes packed standard

Dogging Feature:Available for 36" bar only. Allen-type key furnished standard.

Mullion:Available

UL and ULC Listed*:*GLSCVR7700 Series for Panic & Safety for all types of 4' x 8' single doors and 8' x 8' double doors for Panic & Safety. FGLSCVR7700 Series for all types of 4' x 8' single doors for up to 3 hour fire labelled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab

Dnimensios:

Push Rail Height To Tinished Floor:41" (1041 mm) at center

Push Rail Projection:Neutral 3 5/8" (92 mm) - Depressed 2 7/8" (73 mm)

Center Case:8 1/16" x 1 - 1/8" x 2 3/8" (205 mm x 29 mm x 60 mm)

Model:GLSCVR773684 And FGLSCVR773684 Actual lenght: 34 9/64" Max cut down: 10" Door size: 26" to 36" door width

Model:GLSCVR774884 Actual lenght: 45 29/32" Max cut down: 12" Door size: 36 to 48 door width

Model: GLSCVR7700, FGLSCVR7700, GLSCVR773684,FGLSCVR773684, GLSCVR774884, FGLS7700EO48, FGLSCVR773684, US32D, US10B, US3

 (ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
