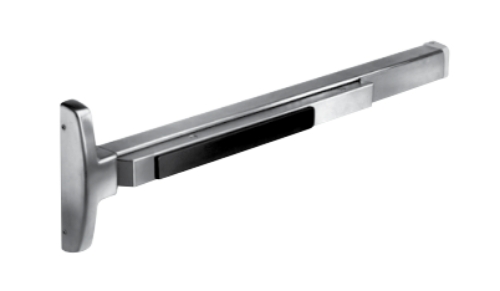

Sargent AD8410-F Narrow Stile Concealed Vertical Rod Exit Device, for Aluminum Doors - Exit Only - 36"

Sargent AD8410-F Narrow Stile Concealed Vertical Rod Exit Device, for Aluminum Doors - Exit Only - 36"

For doors:  33" through 36"  (82cm through 91cm)

• Designed for narrow stile aluminum door applications (e.g., full glass doors)

• Concealed rods for security and aesthetics

• UL Panic listed only

• All functions determined by outside trim

• Devices are ANSI A156.3 - Grade 1

Door Types: Hollow or extruded aluminum doors. For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31- 1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square

Strike640 Strike for Top & Bottom

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with machine screws

Top BoltStainless steel

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Device Centerline*from Finished Floor :*  41" (1041mm) for Standard Applications 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used.

Model: Sargent AD8410-F, AD8410F, AD-8410-F, AD8410-F-32D, AD8410-F-10B,  AD8410F32D, AD8410F10B
