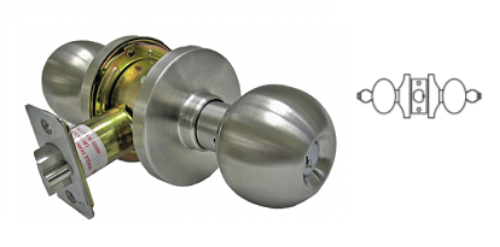

Cal-Royal GRB04-US32D Communicating Lock - Satin Stainless Steel

Cal-Royal GRB04-US32D Communicating Lock - Satin Stainless Steel - ANSI F80

Deadlocking latchbolt operated by knob from either side. Turning key in either knob locks or unlocks its own knob independently.

Finish- US32D - Satin Stainless Steel

Exposed Trim- Wrought brass, bronze or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 2" door thickness.

Backset- Standard 2-3/4", 2-3/8" available.

Strike- ANSI strike (standard) 4 7/8" x 1 1/4". Optional "T" or full lip strike available.

Keying- 6-pin "C" keyway cylinder, 2 keys per lock.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Handing- Completely reversible

Meets or exceeds requirements of BHMA/ANSI 156.2 series 4000 for grade 1 (FF-H-106C)

Model: Falcon GRB, GRB04, GRB04US32D, GRB0432D

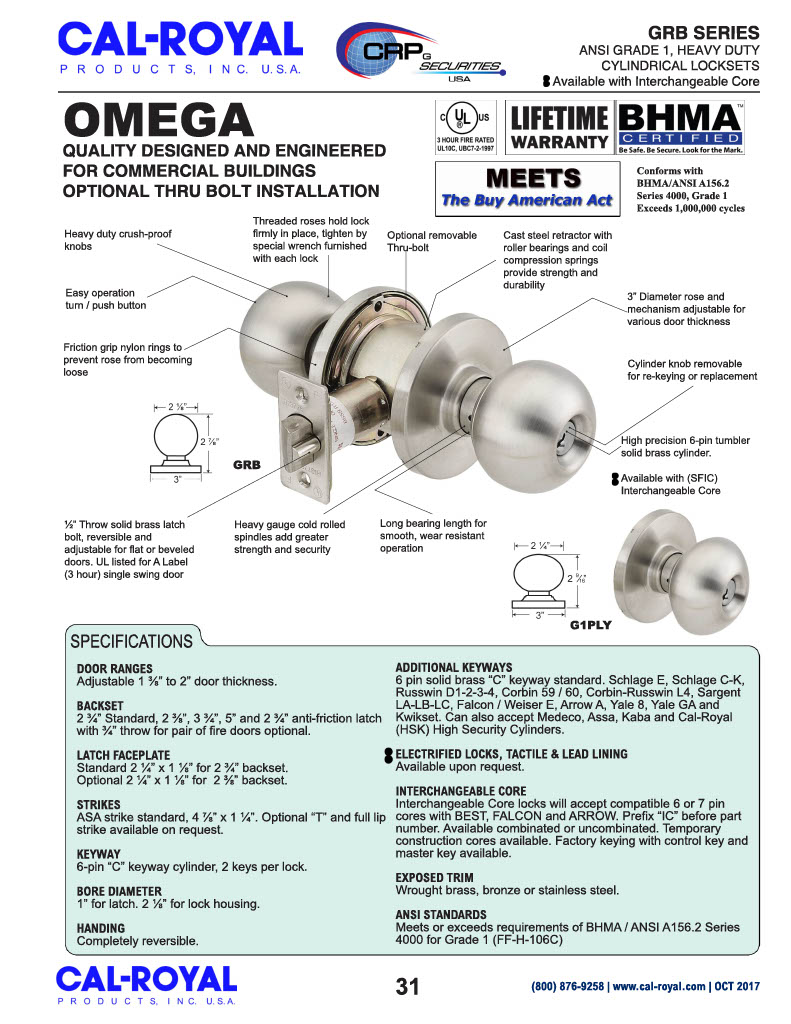

Heavy duty crush-proof knobsThreaded roses hold lock firmly in place, tighten by special wrench furnished with each lockCorrosion treated steel housing 2- 1/16" diameterAnchor SpringCalibrated anchor for visible door thickness adjustmentLong bearing length for smooth, wear resistant operationCylinder knob removable for rekeying or replacementHigh precision 6-pin tumbler solid brass cylinder. Interchangeable with leading manufacturer cylinders3" Diameter rose and mechanism adjustment for various door thicknessHeavy gauge cold rolled steel spindles add greater strength and securityCast steel retractor with roller bearings and coil compression springs provide strength and durability1/2" Throw solid brass latch bolt, reversible and adjustable for flat or beveled doors. UL listed for A label (3 hour) single swing doorFriction grip nylon rings to resist roses looseningEasy operating turn/push button
