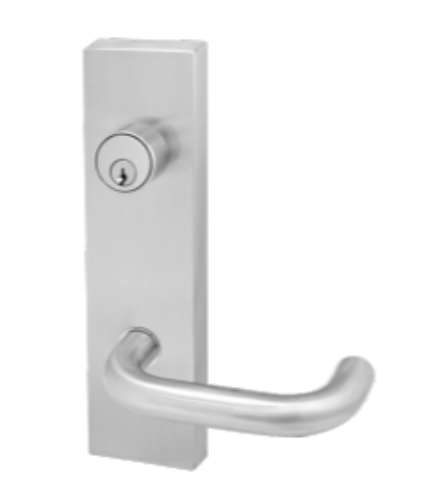

Cal-Royal HDTSESC-40 Dummy Exit Device Escutcheon Lever Trim - Stainless Steel

About this item

Cal-Royal HDTSESC-40 Dummy Exit Device Escutcheon Lever Trim, Stainless Steel - With Clutch

Dummy Escutcheon trim ANSI FUNCTION (02)

Rigid, non clutch mechanism.
Double heavy duty spring support to prevent sagging and enhance operation.
Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.

Door Thickness: Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.

Escutcheon dimensions: 2-3/4" width X 10-1/4" length. Lever length: 4-3/4". Fits and covers 2-1/8 161 cutout

Resources

• https://www.cal-royal.com/files/7700_Accessories_RIMSVR.pdf
